GREENWOOD CMEV.4eHT LOW ENERGY + HUMIDITY & TIMER CONSTANT RUNNING CENTRAL VENTILATION UNIT

More Views

SKU: CMEV.4EHT
GREENWOOD CMEV.4eHT LOW ENERGY + HUMIDITY & TIMER CONSTANT RUNNING CENTRAL VENTILATION UNIT

Availability: In stock

CMEV.4eHT Low Energy, Central Ventilation Unit
Digital Smart Humidiity Sensor
Digital Smart Timer Sensor
Low Energy EC Motor
5 Speed Settings
5 Extract Ports
125mm Ducting or
100mm Ducting with reducers
100% Variable Air Flow

Excl. Tax: £247.38 Inc. VAT: £296.86
OR
Description

Details

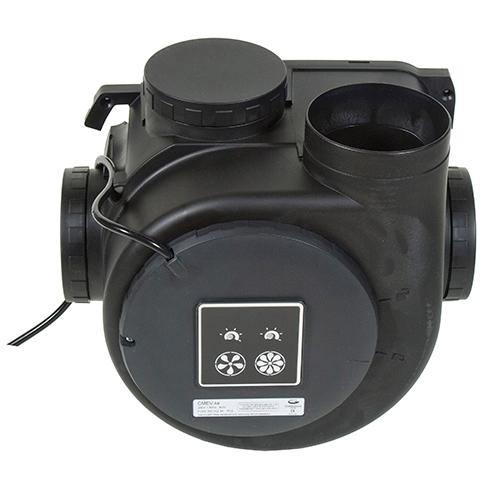

CMEV.4e HT is a low energy continuously running mechanical extract unit for whole house ventilation. It has low energy EC motors and can be installed as a completely discreet system which is centrally mounted in a cupboard or loft space. its compact design makes it ideal for apartments and small properties. Stale air is extracted via remote grilles in each room. The system allows for five extraction ducts which are usually from the kitchen, bathrooms and toilets and are extracted via one exhaust duct to the outside. 125mm or 5" solid ducting is recommended to minimise air resistance.

The unit can be wired to run on low, medium and high speeds via a remote wired 3 position switch (GS1) or low and high only via a double pole switch (GS2). The motor speed is fully adjustable for low and high speeds (medium speed will be based on the mid point between the selected trickle and boost speed).

The HT model incorporates digital SMART technology for the Humidstat and Timer controls. For the Humidistat this means there is no no fixed humidity point for activation. Instead the unit constantly measures humidity levels and will only activate when man-made spikes in humidity - caused by showering, bathing or cooking - are detected. The Timer control, logs the amount of time the room has been in use and automatically adjusts the run- on time accordingly up to a maximum of 15 minutes.







Additional Information

Additional Information

SKU CMEV.4EHT
SKU2 No
Guarantee 2 Year
Spigot Dimension 125mm
Technical Info
Data Sheet: CMEV4eHT_2.pdf

Technical Info

Installation Guide Adobe Acrobat DocumentCMEV Installation Guide Size: (235.29 KB)  Downloads: (15)
