Elica Illusion


Size: H16 (16cm Ceiling Void)
Colour: White
Sale price£1,300.31 inc VAT


The Elica Illusion is designed to blend seamlessly into the ceiling and is available with either a white or black  painted panel or a customisable cover to match the ceiling finish (ready to receive a piece of plasterboard).  This cover hides a powerful extract system and houses two LED light strips.  There are two models - 160 or 300mm deep - depending on the depth of your ceiling void.  The Illusion comes complete with an aluminium grease filter and a smart remote control which can link to and control additional lighting systems within the kitchen.  The unit can be used as either a ducted or a recirculating hood – if using as a recirculating hood, please purchase the optional recycling kit for your hood here - H16 Recycling Kit or H30 Recycling Kit.

DeliveryNext Day
Extractor VersionDuct Out/Recirculating
Absorption293 W (H16), 188W (H30)
Control OptionsRemote control

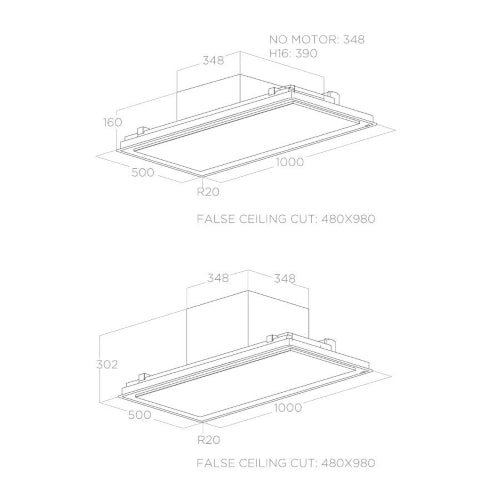

Dimension1000mm x 500mm
Hood Width 1000mmmm,
Hood Fan StyleCeiling
Hood LightingLED Strip 2 x 14W
Performance750 m3/h (H16), 770 m3/h (H30)
Sound53 dBA (H30), 68 dBA (H16)
Maximum Duct Run3m to 9m
Room TypeKitchen
Spigot Dimension220 x 90mm (H16), 150mm dia (H30)
Guarantee2 Years
