• High level safety switch with
• 3A volt-free wires
-normally closed contacts
• Maximum water temp: 40°C
• Class II appliance
• Non continuously rated
• Suction lift: 1m
• Outlet tube size: 6mm i/d
• CE marked
• Thermally protected
• 230V AC 50-60Hz 16W
Description

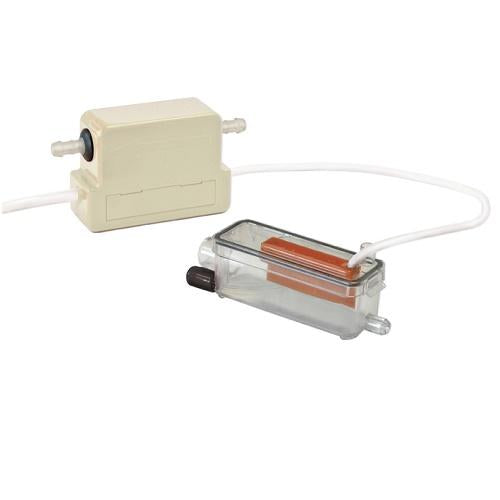

THE MESP 100 MINI ELECTRONIC SPLIT PUMP
The MESP 100 Mini Electronic Split Pump has a full 1 year guarantee and is designed to be installed:
• above a false ceiling where possible
• in plastic conduit
• behind wall mounted evaporators
- Pump rating: 230V AC, 16W 1PH 50/60 Hz
- 3A volt-free alarm wires, normally closed contacts
- Maximum water temperature: 40°C
- Continuously rated,
- Capacitance Sensor
- Class II appliance,
- Thermally protected
| Brand | ASPEN (CAT 80) |
| Dimensions | 55mm (H) 106mm (W) x 29mm (D) |
| Max Flow | 12L/hr at Zero Head |
| Max Rec. Head | 8m |
| Max Suction Lift | 1m |
| Tank Capacity | n/a |
| Sound Level @ 1m | 23dB(A) @ 1m |
| Rated | Continuously rated |
| Class | Class II appliance |
| Max Unit Output | 13KW / 45,500 Btu |
| Max Water Temperature | 40°C |
| Inlet/Outlet | 6mm ID |
| IP Rating | n/a |
| Safety Switch | Normally closed |
| Thermal Protection | Yes |
| Fully Potted | Yes |
| Self Priming | Yes |
| Power | N/A |
| Guarantee | 1 Year |
