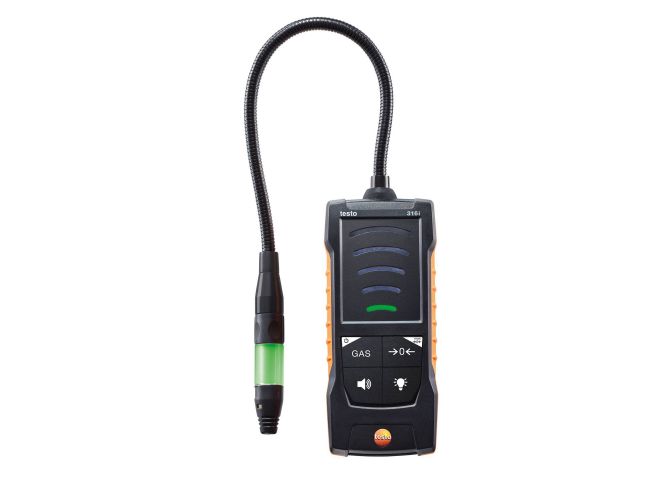

testo 316i - gas leak detector with flexible probe

• AVAILABLE TO BACKORDER - DELIVERY TO BE CONFIRMED

• Acoustic and visual alarm via multi-colour LED on the sensor head and bar indicator on the instrument

• Connection to testo Smart App for ppm display and documentation

• Sensor self-test and automatic zeroing

• Flexible probe for locations that are difficult to access

With the testo 316i gas leak detector, you can locate leaks easily and precisely. The acoustic and visual alarm via the multicolor LED on the sensor head and the self-explanatory bar scale ensure simple leak detection.

Details

Product Description

Ideal if you wish to rule out or locate leaks in gas fittings – equipped with simple traffic light LED on the head and self-explanatory bar scale. In addition, ppm values and even %LEL (lower explosive limit) can be called up and documented via the app.

Advantages of the testo 316i gas leak detector with flexible probe

• Multi-colour LED (visual and acoustic alarm
• Sensor self-test and automatic zeroing
• Flexible measuring probe for locations that are difficult to access
• Connection to testo Smart App for documentation and ppm display
• Battery-powered

Delivery Scope

testo 316i gas leak detector with flexible probe, including batteries

---

Technical Data

Methane (CH₄)
Measuring range	50 ppm to 4.0 Vol.%
Resolution	1ppm 1% LEL

Propane (C₃H₈)
Measuring range	50 ppm to 1.9 Vol.%
Resolution	1 ppm 1% LEL

Butane (C₄H₁₀)
Measuring range	50 ppm to 1.5 Vol.%
Resolution	1 ppm 1% LEL

Leak detection H₂
Measuring range	50 ppm to 4.0 Vol.%
Resolution	1 ppm 1% LEL

General technical data
Operating humidity	0 to +80 %RH
Weight	405 g
Reaction time	< 2 s
Dimensions	150 x 66 x 38 mm (LxWxH)
Operating temperature	-5 to +50 °C
Leakage alarm	3-colour LED on sensor head; bar scale; acoustic; App
Length of gooseneck	395 mm
Battery life	>15 h
Storage temperature	-20 to +50 °C
