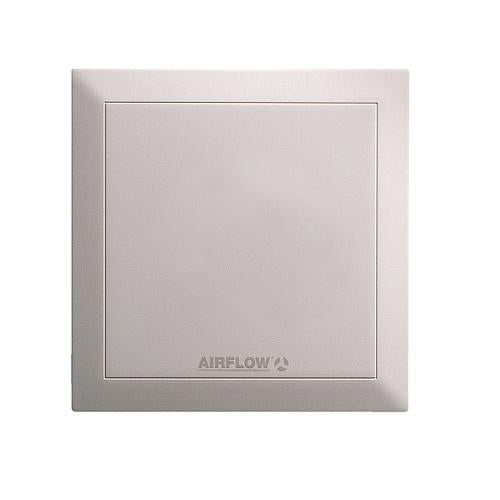

Airflow QuietAir - QT100B

This QuietAir Basic Fan carries the Quiet Mark Approval and is part of an extended range of elegant, discreet axial fans that are extremely quiet with various control options that activate the fan only when needed - the choices are: remote switching, timer, humidity with timer and motion sensor with timer.

This basic model is controlled by a remote switch, it can be connected to the same switch as the light circuit or it can have its own switch. There is also the option to use both of the QuietAir speeds, a three way position switch should be used to achieve this, see our product code 9041315 Model 3POSSW.

This 100mm Basic version is fitted with:

Basic on/off controls via a light/remote switch

Two speed options - to adjust for individual requirements

Integral flow straightener

Anti back draught flap

Clip-on cover for ease of cleaning

The QuietAir range is designed to provide powerful extraction levels that exceed the requirements of the latest Building Regulations. Fans ideally should be quiet when they operate but not at the cost of performance. This fan will perform to Building Regulations Installed Performance requirements, on BOTH speeds. Therefore when you take into consideration the noise level and energy consumption of this fan in relation to its performance then the QuietAir is class leading.

This fan has also been designed to deal with a longer duct run when compared to other axial designed fans. To achieve the longest duct run, rigid ducting should be used and not flexible ducting. Where flexible ducting is used the radius of the pipe must be maintained as well as being pulled very tight to reduce resistance. An extractor fans location in a room is important for it to perform; it ideally needs to be the furthest point away from where the replacement air will enter the toilet, ensuite, bathroom. In most cases the replacement air comes in under the door of the room, important that the undercut on the door meets the Building Regulations for air to flow in.

This fan can be mounted in the wall or the ceiling, where there is reduced depth in a ceiling application then part of the spigot vane on the back of the fan can be removed and reinstalled after the bend. It is important that if the duct run is long (more than 1m) that the spigot is reinserted as this helps the flow of air. This fan is fitted with a back draught flap that can be removed if you already have an external grille that provides this function.

Box Contains:

1 x fan

1 x Screws and wall plugs

1 x Instructions on how to fit
