• High Flow rate
• Handles 80°C water
• Non return valve
• Easy installation
• Up to 2400kW (8m Btu/h)
• Air handling units (AHUs); Humidifiers; Refrigeration
• Perfect for... Large volumes of hot water
Description

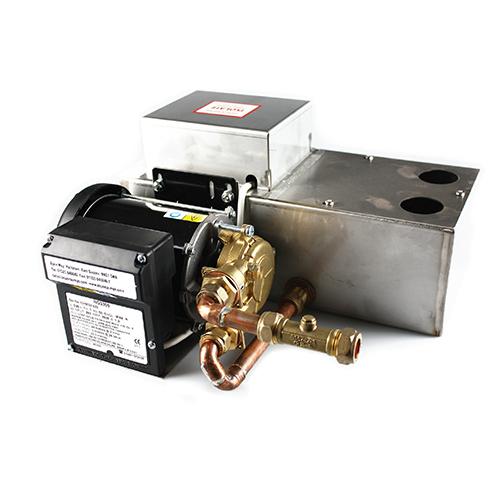

HOT WATER HEAVY DUTY CONDENSATE REMOVAL PUMP
The Hot Water Heavy Duty pump is designed to handle 80°C water and with an outstanding 1800L/h water flow rate. No job is too big!
Key Features
• High Flow rate
• Handles 80°C water
• Non return valve
• Easy installation
Suitability
• Up to 2400kW (8m Btu/h)
• Air handling units (AHUs); Humidifiers; Refrigeration
• Perfect for... Large volumes of hot water
| Brand | ASPEN (CAT 80) |

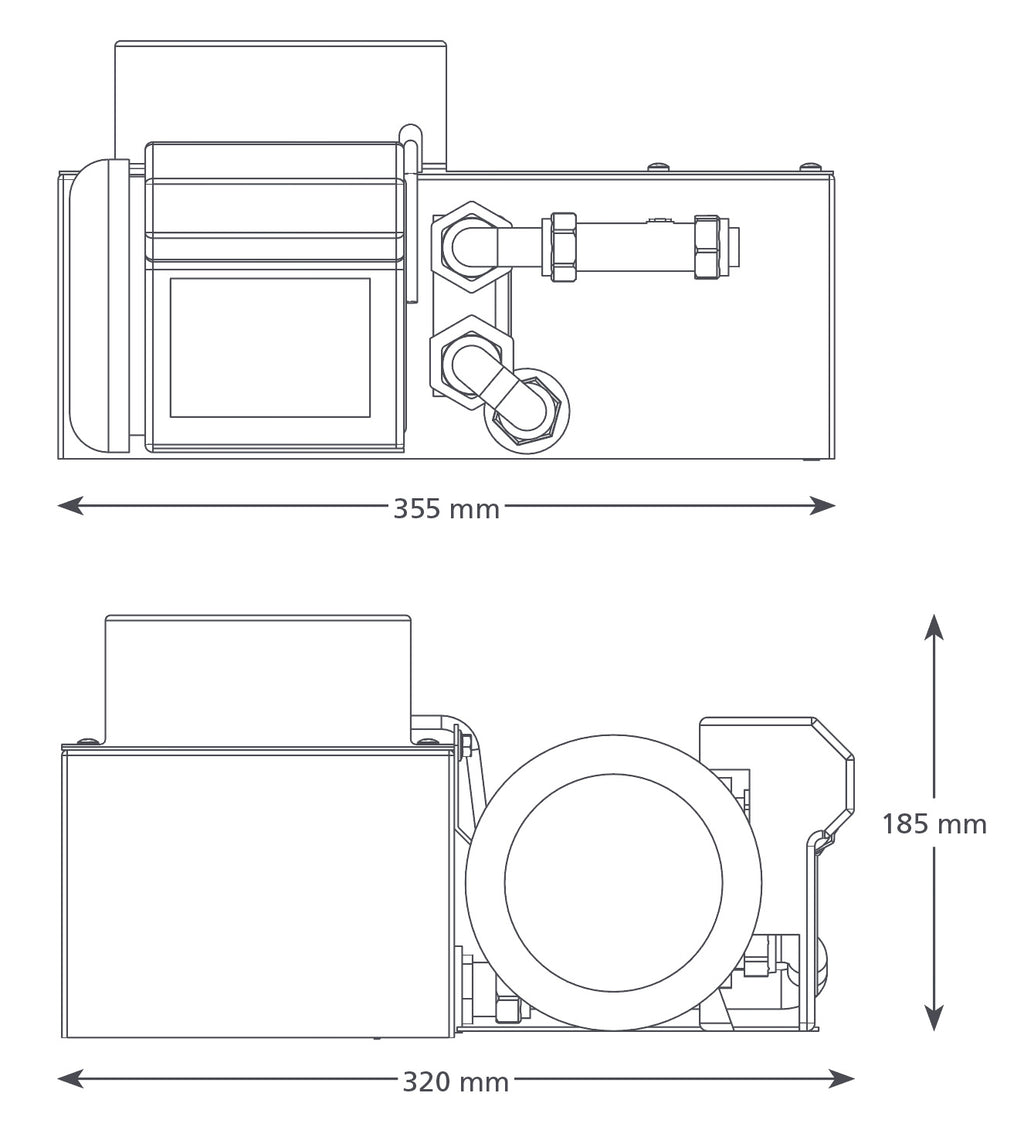

| Dimensions | 320 x 355 x 160 |
| Max Flow | 1800L/h @ 0 head |
| Max Rec. Head | 15m |
| Max Suction Lift | n/a |
| Tank Capacity | 5L |
| Sound Level @ 1m | 63dB(A) |
| Rated | Continuous |
| Class | I appliance |
| Max Unit Output | 2400 kW / 8m Btu/h |
| Max Water Temperature | 80o C / 212o F |
| Discharge Tube | n/a |
| Inlet/Outlet | x2 40mm in/15mm out |
| IP Rating | IP21 |
| Safety Switch | 3.0A Normally closed |
| Thermal Protection | Yes |
| Fully Potted | n/a |
| Self Priming | n/a |
| Power | 230 VAC, 1.5A, 50/60Hz |
| Guarantee | 1 Year |
• High Flow rate
• Handles 80°C water
• Non return valve
• Easy installation
• Up to 2400kW (8m Btu/h)
• Air handling units (AHUs); Humidifiers; Refrigeration
• Perfect for... Large volumes of hot water
