• Acoustic damper
• Pump sits in trunking elbow
• Left or right install
• Range of trunking systems
Up to 16kW / 54,000Btu/h
High wall split systems
Perfect for... Commercial use where silence is important
Description
SILENT+ MINI LIME CONDENSATE REMOVAL PUMP WITH SLIMLINE IVORY TRUNKING - PLUG & PLAY
The Silent+ Mini Lime is designed around a ‘total system approach’ and includes many features to create a truly silent system. Perfect for offices and meeting rooms. ‘Pump only pack’ also available.

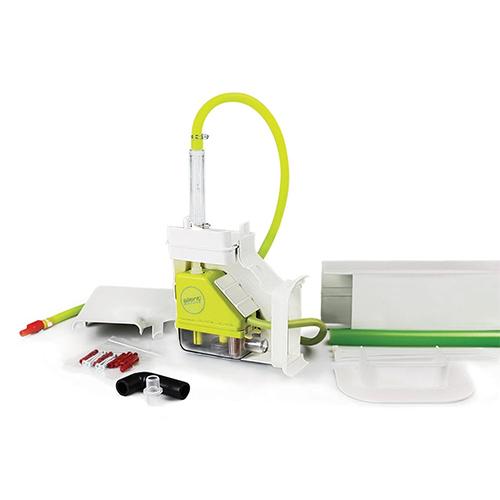

IN THE BOX:
• Silent+ Mini Lime pump (including 1.5m hard wired power cable)
• Acoustic damper and 1m lime discharge tube with connector
• 500mm Lime green inlet hose 14mm ID
• 40mm Vinyl breather tube 6mm ID
• Anti siphon device
• Elbow front and back
• 800mm Conduit front and back
• Internal conduit sleeve (Slimline system only)
• Gasket (Slimline, BBJ and Inoac/ Inaba systems only)
• Ceiling plate
• Drain connector kit
• Fixing kit
• Install manual
Brand | ASPEN (CAT 80) |
Dimensions | 99 x 44 x 114 |
Max Flow | 12L/h @ 0 head |
Max Rec. Head | 10m |
Max Suction Lift | n/a |
Tank Capacity | n/a |
Sound Level @ 1m | 21dB(A) |
Rated | Non continuous |
Class | II appliance |
Max Unit Output | 16kW / 54,000Btu/h |
Max Water Temperature | 40o C / 104o F |
Discharge Tube | 6mm ID |
Inlet/Outlet | n/a |
IP Rating | IP24 |
Safety Switch | 3.0A Normally closed |
Thermal Protection | Yes |
Fully Potted | Yes |
Self Priming | Yes |
Power | 230 VAC, 0.1A, 16W, 50/60Hz |
Guarantee | 1 Year |
