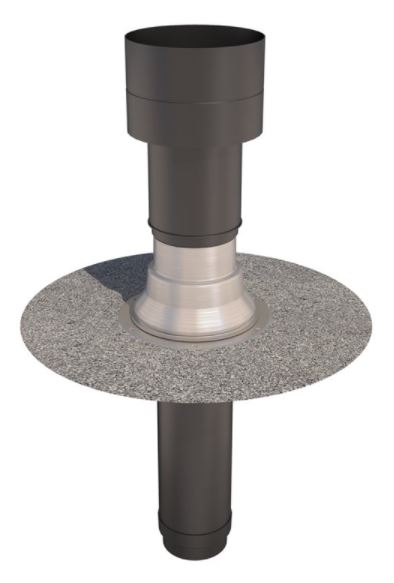

Ubbink insulated flat roof terminal with aluminium flange for use with bitumen roof installations
Product features and benefits.
- Large free vent area/Lot Pa resistance
- Fully insulated to cow
- 2 Piece Stack aluminium flange
Description
he OFT terminal range is suitable for use with soil & vent systems and for both mechanical and natural (passive) ventilation installations.
The OFT 5 range has a higher insulation value above the roof space which therefore reduces the risk of condensation.
Material Per Roof Type;
Bitumen: Polyethylene/Aluminium/ Bitumen
Polyethylene is fire retardant
Diameter: 150mm
Height Above Roof: 380mm
Flange DIa: 490mm
Depth Below Roof: 608mm
Free Vent Area mm2: 14400
Pa Resistance Extract: (Reading at 200m3/h) 1.3
Complete Air Excellent system installation
Brand | UBBINK (CAT 77) |
Delivery | Next Day |
Dimensions | Diameter: 150mm Height Above Roof: 380mm Flange DIa: 490 Depth Below Roof: 608mm Free Vent Area mm2: 14400 Pa Resistance Extract: (Reading at 200m3/h) 1.3 |
Guarantee | 1 Year |
