Simple, reliable operation with automatic selection of measurement parameters
-
DIN EN 61243-3:2014 and DIN EN 61010‑1:2011 certified
-
Single pole voltage testing to determine quickly whether conductors are live
-
Voltage range up to 1,000 V
All-in-one voltage tester and current measuring instrument: the innovative testo 755-2. A multitasker for almost all daily electrical measuring tasks. With automatic measurement parameter detection, exchangeable measuring tips and an extended voltage range up to 1,000 V.
-
-
-
-
-
-
Details
Product Description
Overview
All-in-one voltage tester and current measuring instrument: the innovative testo 755-2 Current-voltage tester. A multitasker for almost all daily electrical measuring tasks. With automatic measurement parameter detection, exchangeable measuring tips and an extended voltage range up to 1,000 V.
With the testo 755-2, you are equipped for the most important tasks of the working day. The current/voltage tester is suitable for determining voltage or de-energization, checks voltage level and continuity and measures flow of current along with current consumption. It is a simple task to change faulty measuring tips – without needing to replace the instrument. And the automatic measurement parameter detection and integrated torch make operation and measurement particularly easy and reliable.
Compared to the testo 755-1, the testo 755-2 has an increased voltage range of up to 1,000 V and enables rotating magnetic field measurement along with single pole voltage testing to determine quickly whether conductors are live.Delivery Scope

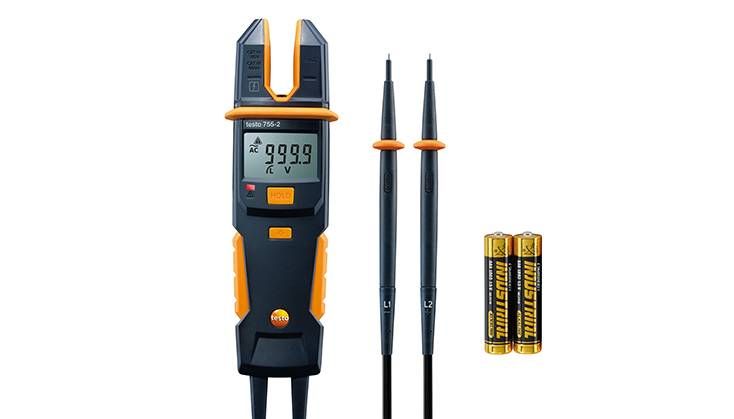

testo 755-2 - Current/voltage tester, batteries and measuring tips
Technical Data
| DC voltage | |
|---|---|
|
Measuring range |
6 to 1000 V |
|
Resolution |
max. 0.1 V |
|
Accuracy |
± (1.5 % of mv + 3 Digit) |
| AC voltage | |
|---|---|
|
Measuring range |
6 to 1000 V |
|
Resolution |
max. 0.1 V |
|
Accuracy |
± (1.5 % of mv + 3 Digit) |
| AC current | |
|---|---|
|
Measuring range |
0.1 to 200 A |
|
Resolution |
max. 0.1 A |
|
Accuracy |
± (3 % of mv + 3 Digit) |
| Resistance | |
|---|---|
|
Resolution |
max. 1 Ohm |
|
Measuring range |
30 to 100 kOhm |
|
Accuracy |
± (1.0 % of mv + 5 Digit) |
| General technical data | |
|---|---|
|
Operating humidity |
0 to 75 %RH |
|
Storage temperature |
-15 to +60 °C |
|
Weight |
320 g |
|
Dimensions |
199 x 62 x 40 mm |
|
Operating temperature |
-10 to +50 °C |
|
Product colour |
Black |
|
Protection class |
IP64 |
|
Standards |
EN 61243-3; EN 61010-1 |
|
Battery type |
2 AAA micro batteries |
|
Display type |
LCD (Liquid Crystal Display) |
|
Display size |
one-line |
|
Overvoltage Category |
CAT IV 600V; CAT III 1000V |
|
Authorizations |
CSA; CE |
| Instrument Measurement Functions | |
|---|---|
|
Continuity testing |
yes |
|
Display ligthing |
yes |
|
Hold |
yes |
|
Rotating magnetic field testing |
yes |
|
Single pole phase testing |
yes |
|
Measuring point illumination |
yes |
|
Display (counts) |
4,000 |
|
Autom. measurement parameter detection |
yes |
