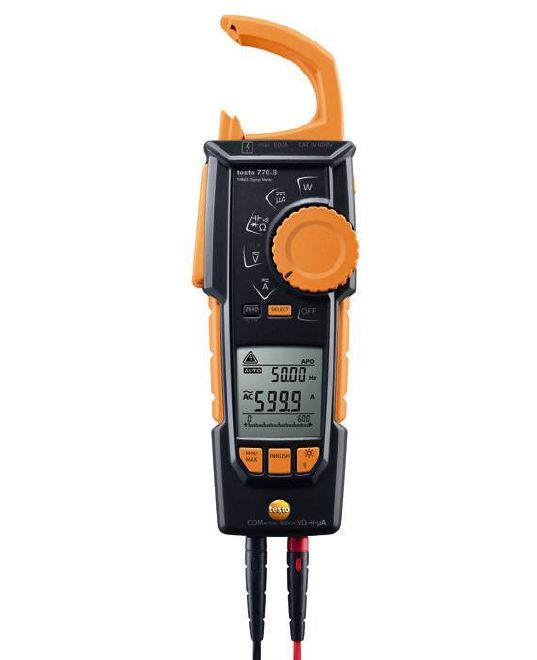

testo 770-3 - TRMS Clamp meter with Bluetooth

SKU: 5907703

Price:
Sale price£182.25 inc VAT

Description


  • Easy to operate thanks to the fully retractable pincer arm

  • Auto AC/DC and large two-line display

  • Improved TRMS method

  • Bluetooth connection to your smartphone (with the testo Smart App)

Non-contact measurement on tightly packed cables is really easy and reliable with the testo 770-3 clamp meter. Its innovative grab mechanism will make your work easy. The most powerful model in the clamp meter series, it offers lots of additional functions for those challenging tasks that you are faced with on a daily basis, e.g. communication with the testo smart app via Bluetooth.

Details

Product Description

Overview

The three instruments in the testo 770 clamp meter family are ideally suited for current measurement in switching cabinets. One of the two pincer arms can be fully retracted into the instrument. This unique grab mechanism means that cables in tight switching cabinets can be easily grabbed. The automatic measurement parameter detection also ensures reliable work: in the current and voltage area, all three instruments detect direct and alternating current and select other parameters such as resistance, continuity, diode and capacitance automatically.

The testo 770-1 model is the standard version for daily measuring tasks, including starting current measurement.

The testo 770-2 also has a μA range as well as an integrated temperature adapter for all type K thermocouples.

In addition to that, the testo 770-3 includes real-time power measurements (Watts), Power Factor, and Bluetooth. The free Testo Smart Probes App can be used for remote viewing, monitoring, data logging, and creating reports via Bluetooth. The powerful app allows you to create custom reports that include photos, data, and graphs that can be saved or sent via email.

Delivery Scope

testo 770-3 Clamp Meter includes batteries, 1 set of measuring cables. Additional features: True RMS measurement function, μA measurement range, integrated temperature adapter for all type K thermocouples. Connects to testo Smart Probes App via bluetooth for performance measurement function and downloadable reports. Also auto-calculates Power/Wattage.



Technical Data

Temperature - TC Type K (NiCr-Ni)

Measuring range

-20 to +500 °C

Accuracy

±1 °C (0 to +100 °C)

Resolution

0.2 °C

DC voltage

Measuring range

1.0 to 600.0 V

Resolution

max. 1 mV

Accuracy

± (0.8 % of mv + 3 Digit)

AC voltage

Measuring range

1.0 mV to 600.0 V

Resolution

max. 1 mV

Accuracy

± (1 % of mv + 3 Digit)

DC current

Measuring range

0.1 to 600.0 A (clamp)

0.1 to 600.0 μA (measuring cables)

Resolution

0.1 (clamp)

0.1 (measuring cables)

Accuracy

± (2 % of mv + 5 Digit) (clamp)

± (2 % of mv + 5 Digit) (measuring cables)

AC current

Measuring range

0.1 to 600.0 A (clamp)

0.1 to 600.0 μA (measuring cables)

Resolution

0.1 A (clamp)

0.1 μA (measuring cables)

Accuracy

± (2 % of mv + 5 Digit) (clamp)

± (1.5 % of mv + 5 Digit) (measuring cables)

Resistance

Resolution

max. 0.01 Ohm

Measuring range

0.01 to 60.0 MOhm

Accuracy

± (1.5 % of mv + 3 Digit)

Capacitance

Resolution

max. 0.01 nF

Measuring range

2 nF to 60.00 mF

Accuracy

± (1.5 % of mv + 5 Digit)

Frequency

Resolution

max. 0.1 Hz

Measuring range

0.01 Hz to 9999 kHz

Accuracy

± (1 % of mv + 1 Digit)

Active Power

Measuring range

0.1 W to 600 kW

Accuracy

± (5 % of mv + 5 Digit)

Resolution

0.1 W

Reactive Power

Measuring range

0.1 to 600.0 kvar

Accuracy

± (10 % of mv + 5 Digit)

Resolution

0.1 var

Apparent Power

Measuring range

0.1 VA to 600.0 kVA

Accuracy

± 1 Digit

Resolution

0.1 VA

Direct current DC Voltage

Measuring range

0.1 W to 600.0 kW

Accuracy

± 1 Digit

Resolution

max. 0.1 W

Power Factor

Measuring range

-1.00 to +1.00

Accuracy

± (10 % of mv + 5 Digit)

Resolution

0.01

General technical data

Operating humidity

0 to 80.0 %RH

Weight

378 g

Dimensions

249 x 96 x 43 mm

Operating temperature

-10 to +50 °C

Connectable probes

1 x temperature probe (adapter required for type K thermocouples)

System requirements

requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0

Product colour

Black

Standards

EN 61326-1; EN 61010-2-032; EN 61140

Battery type

3 AAA micro batteries

Display type

LCD (Liquid Crystal Display)

Display size

2 lines

Interface

2 measuring jacks

Storage temperature

-15 to +60 °C

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

CSA; CE

Internal_resistance

11 MOhm (AC / DC)

Instrument Measurement Functions

Diode test

yes

Continuity testing

yes

Display ligthing

yes

Hold

yes

MinMax

yes

Power Measurement

yes

Temperature measurement with adapter

yes

True RMS

yes

Inrush current measurement

yes

Bluetooth

yes

Display (counts)

6,000

μA current measuring range

yes

Autom. measurement parameter detection

yes
