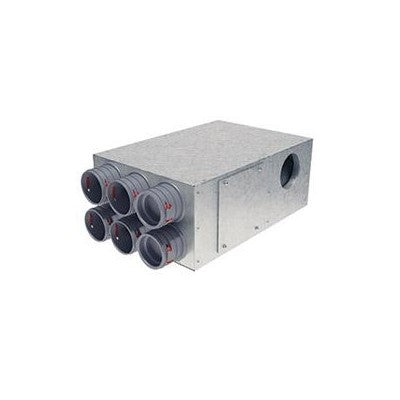

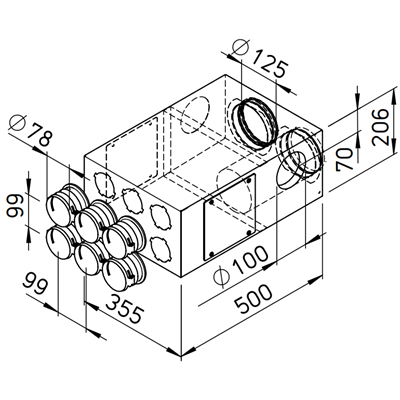

Enables supply and extract simultaneously. Connects to AirflexPro Round Pipe Ø75mm (9041130) up to six spigots on the supply side, and two Ø100mm extract points. Connection to outside is made by Ø125mm duct connections. Unit comes with two service access points for ease of duct maintenance. Unit is manufactured from zinc plated steel with the extract air chamber lined with acoustic foam.
KIT OF PARTS:
- 1 x 6 Port Combi Distribution Box (R/H)
- 6 x AirflexPro Bayonet Connectors
- 2 x Plastic Blanking Plates
- 12 x AirflexPro Fixing Clips
