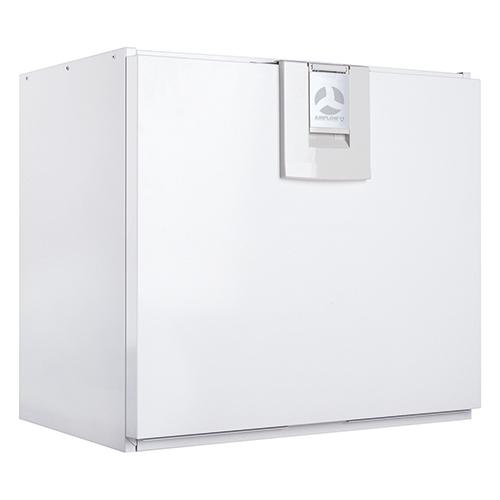

Airflow DV96 (L) Adroit with integral CO2 sensor

SKU: 90001266

Sale price£2,880.00 inc VAT


DV96 Adroit (Integral CO2 Sensor) is a ventilation unit with state-of-the-art technology suitable for medium sized houses up to 130 m2. Designed to provide essential ventilation and to save you money through its intelligent heat recovery facility, this system provides a cost-effective and environmentally friendly option for residential applications.

Control your indoor air environment at home or on the go via the Adroit 'Cloud' by smartphone, tablet, or PC.

Having the latest, low energy EC fan technology, the DV96 Adroit (Integral CO2 Sensor) complies with the ErP 2016 and the proposed ErP 2018 standards. The unit comes with an outstanding 5 years warranty*, is SAP Appendix Q eligible.


  • Extracts up to 320 m3/hr @ 100 Pa
  • Up to 90% thermal efficiency
  • Automatic, 100% bypass
  • Triple filter design - ISO 16890 compliant
  • Integral carbon dioxide sensor
  • 5 year warranty*
  • 'A' energy rating
  • Internet control by smartphone, tablet, or PC
  • Passive house certified


  • Supply and extract air ventilation with heat recovery
  • Galvanised steel, powder coated double-skin casing
  • Auto cut-out switch for extra safety
  • BMS connection via MODBUS or KNX (optional)
  • On demand control via room or duct sensor options
  • Complies with the NHBC criteria and ERP 2016 standards
  • SAP Appendix Q eligible. Meets building regulations.
  • Integral carbon dioxide sensor as standard
  • Optional LCD digital controller with four independent environmental profiles
  • Optional manual four speed controller
  • Optional smart frost protection
  • Optional Built-In electric post heater (Part number: 90001266EPH; to be ordered via Quick Order Pad)
Dwelling Size130
Dimensions600 x 430 x 545
MountingWall / Ceiling
Connections MM4 x 125
Condensate Discharge3/4 BSP
Air Flow@ 100PA(m3 /hr) / (l/sec) 320 / 89
Sound Level @3M (DBA)48
Thermal EfficiencyUp to 90%
Max Power Consumption162w
Frost ProtectionOptional
Summer BypassAutomatic
Filter Class2 x G4, 1 x F7
ControlsOptional Digital or Manual
IP RatingIP34
Running ModeContinuous
Parts Guarantee5 Years
Motor Guarantee1Year
SAP-Appendix QYes
Passive HouseYes
(ERP) Directive 2016 RatingA
