- Flow rate up to 22 l/sec (79 m³/hr ).
- Bluetooth controlled via myAirflow
- 35 dBA
- IPX5 Rated
- 5 Years Guarantee
Description
-

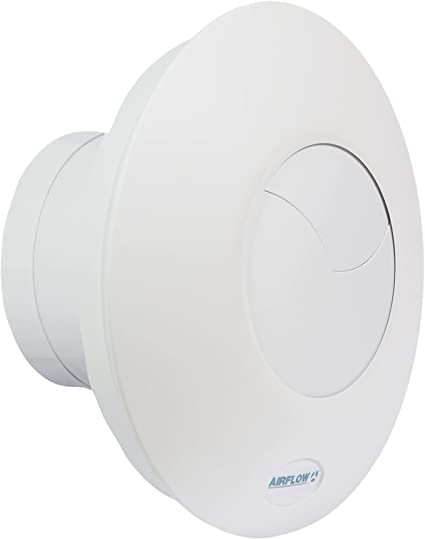

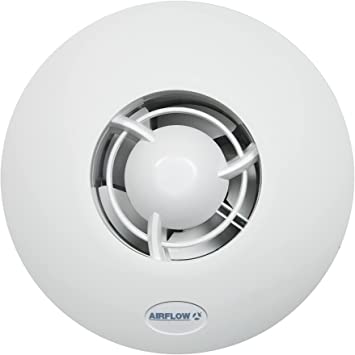

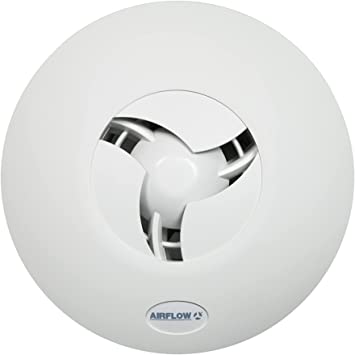

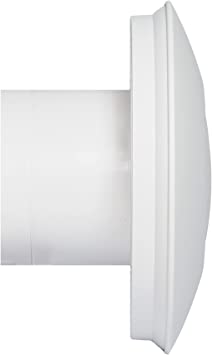

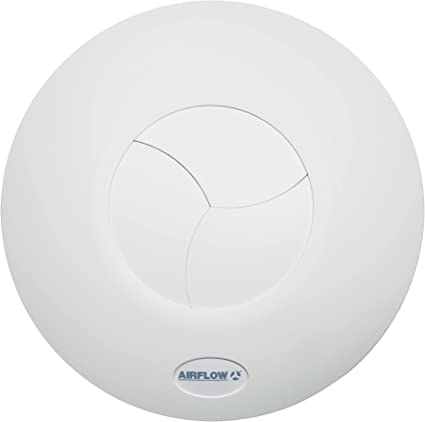

New iCONsmart 15, the next generation of this million selling range, brings new exciting and unique innovations being ideal for toilets, en-suites, shower rooms and bathrooms.
Exceptional quietness, next generation micro-module controllers, outstanding aerodynamic performance that all benefit the end user. The stylish iCONsmart 15 can be easily mounted in the wall or ceiling through a quick, core drilled hole which enables immediate fixing. Cantilever fixing lugs enable recessed installation on uneven surfaces. Unique iris shutters that operate silently whilst preventing backdraughts from the outside. iCONsmart revolutionary design ensures effective ventilation, which is quiet and uses minimal energy. The quiet axial fan has been designed and developed in CFD (Computational Fluid Dynamics) to deliver the next generation performance for various applications.
For the very first time, the Bluetooth enabled app allows installation and ongoing rolling data log of fan performance to be fully controlled simply using a smartphone. Furthermore, the iCONsmart brings paperless commissioning, making old fashioned paper registration a thing of the past by electronically submitting each identified fan data to Building Control via the fully approved NICEIC on-line portal.
iCONsmart is designed with its own innovative 'Usage Data' fan control and monitoring via myAirflow. The Bluetooth enabled app allows the user to view and adjust on-going flow rates, as well as a full set of other functions and features available when using the myAirflow app. With a compact design, the new micro modules are small and easy to install. The digital micro modules are enabled and adjusted via myAirflow and they can fit all three fan sizes.
Please note:
Model above is for basic on/off switching. You have a choice of the following optional micro modules to upgrade your fan: Timer, Humidity & Timer, Motion Sensor & Timer and Motion Sensor with Humidity & Timer. Don’t forget to add the control module you want. Any module fits any fan.Applications
Toilet, En-suite, Shower rooms and Bathrooms
Main Features
- Flow rate up to 22 l/sec (79 m³/hr ).
- Ductable for short runs.
- Silent shutter.
- Stylish design.
- Low energy consumption.
- Next generation digital micro modules.
- Multi-function modules: Timer, Humidity & Timer, Motion Sensor & Timer and Motion Sensor with Humidity & Timer.
- Modules fit in all fans.
- IPX5.
- Bluetooth controlled via myAirflow.
- Real time data available.
- Complies with Building Regulations.
- NICEIC paperless notification.*
- Wall/ceiling, recessed mounting.
- Cantilever lugs to facilitate uneven surfaces.
- Available in three sizes: 100 mm, 125 mm, 150 mm.
- 5 years warranty.
*Must be a NICEIC registered competent person to access this feature.
Brand | AIRFLOW SPV VENT (CAT 50) |
Delivery | Next Day |
Dimensions | 197 x 197 x 40 |
Fan Location | Wall or Ceiling |
Sound | 35dB(A) |
Performance | 79 (22) |
Integral Shutters | Yes |
IP Rating | IPX5 |
Maximum Duct Run | 3m or less |
Power | 7.5W |
Room Type | Toilet/Bathroom |
Running Mode | Intermittent |
Safety Zone | Zone 1, 2 and Outside |
Spigot Dimension | 100 |
Guarantee | 3 Years |
