- Remote switch on/off with 2 min delay on and adjustable run-on timer
- Adjustable over run timer 6 - 21 mins
- 2 speed low noise 25/30dBA
- IP45 rated
- 3 Years Guarantee

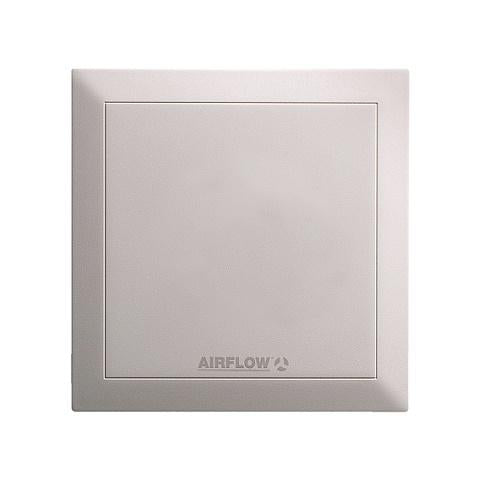

This QuietAir Timer Fan carries the Quiet Mark Approval and is part of an extended range of elegant, discreet axial fans that are extremely quiet with various control options that activate the fan only when needed - the choices are: remote switching, timer, humidity with timer and motion sensor with timer.
This Timer model is controlled by a remote switch, it can be connected to the same switch as the light circuit or it can have its own switch.
There is also the option to use both of the QuietAir speeds, a separate three way position switch should be used to achieve this, see our product code 9041315 Model 3POSSW
This 100mm version is fitted with:
An over-run timer which can be set at 6, 12, 15 or 21 minutes
A 2 minute delayed start - leaving a delay of 2 minutes before the fan operates - ideal for quick night time visits to the toilet
Two speed options - to adjust for individual requirements,
Integral flow straightener,
Anti back draught flap
Clip-on cover for ease of cleaning
When installing this fan you need to select which of the two speeds you want it to operate at if not using the three way switch above. This fan has various settings; these are adjustable by way of the dip switches located under the cover. The adjustable settings are: switching the delayed timer on or off, switching on the room refresh function and what intervals you want it to operate at, and the delayed timer function, you select the amount of run on time after switching the fan off. It comes factory set and you only need to access the dip switches if you want to change the factory settings. More detail is available in the wiring instructions included in the box.
The QuietAir range is designed to provide powerful extraction levels that exceed the requirements of the latest Building Regulations. Fans ideally should be quiet when they operate but not at the cost of performance. This fan will perform to Building Regulations Installed Performance requirements, on BOTH speeds. Therefore when you take into consideration the noise level and energy consumption of this fan in relation to its performance then the QuietAir is class leading. This fan has also been designed to deal with a longer duct run when compared to other axial designed fans. To achieve the longest duct run rigid ducting should be used and not flexible ducting. Where flexible ducting is used the radius of the pipe must be maintained as well as being pulled very tight to reduce resistance.
1 x fan
1 x Screws and wall plugs
1 x Instructions on how to fit
|Dimensions||147mm X 147mm X 96mm|
|Fan Location||Wall or Ceiling|
|Performance||75 / 90 (21/25)|
|Maximum Duct Run||3m or less|
|Power||5w min - 9w max|
|Safety Zone||Zone 1, 2 and Outside|
