Description

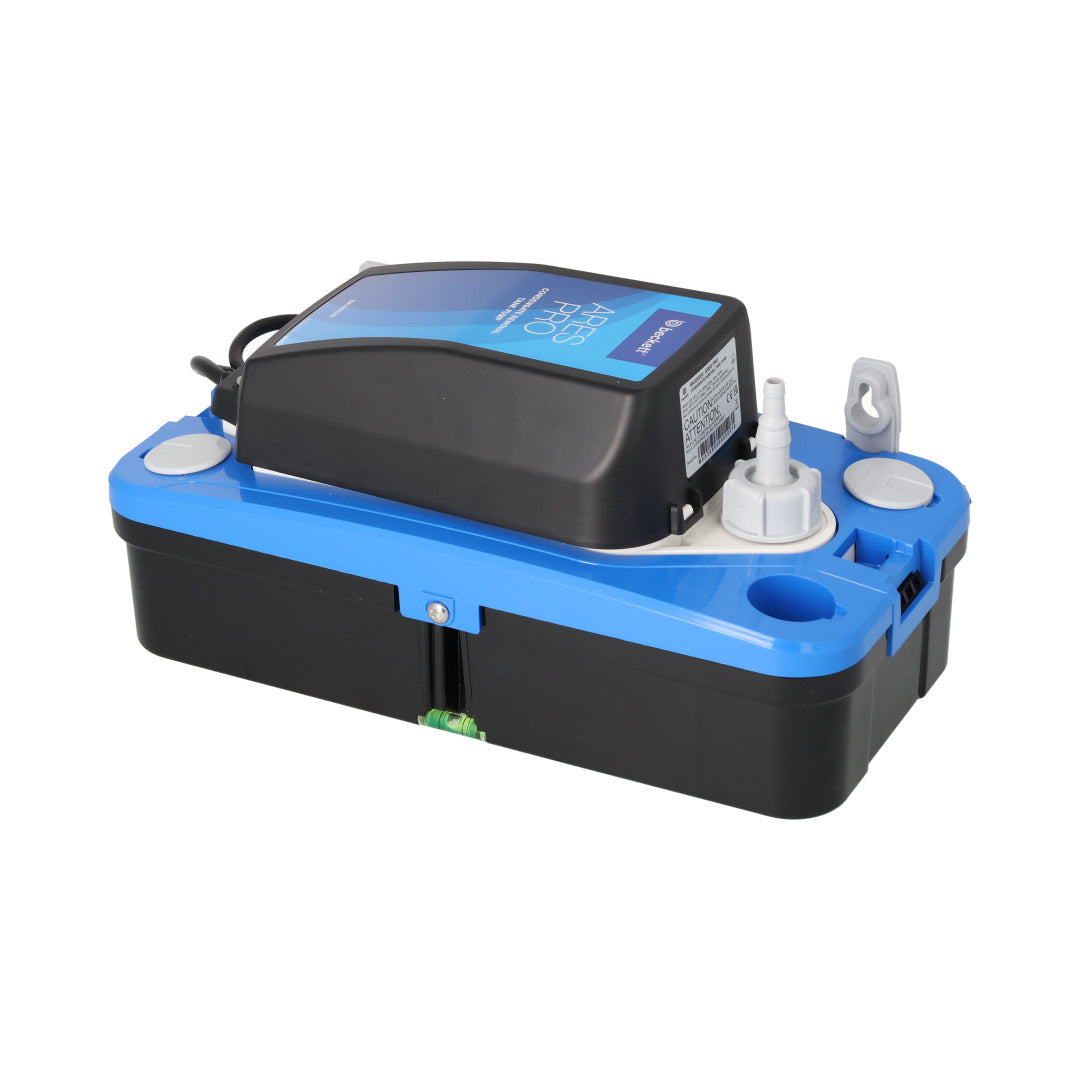

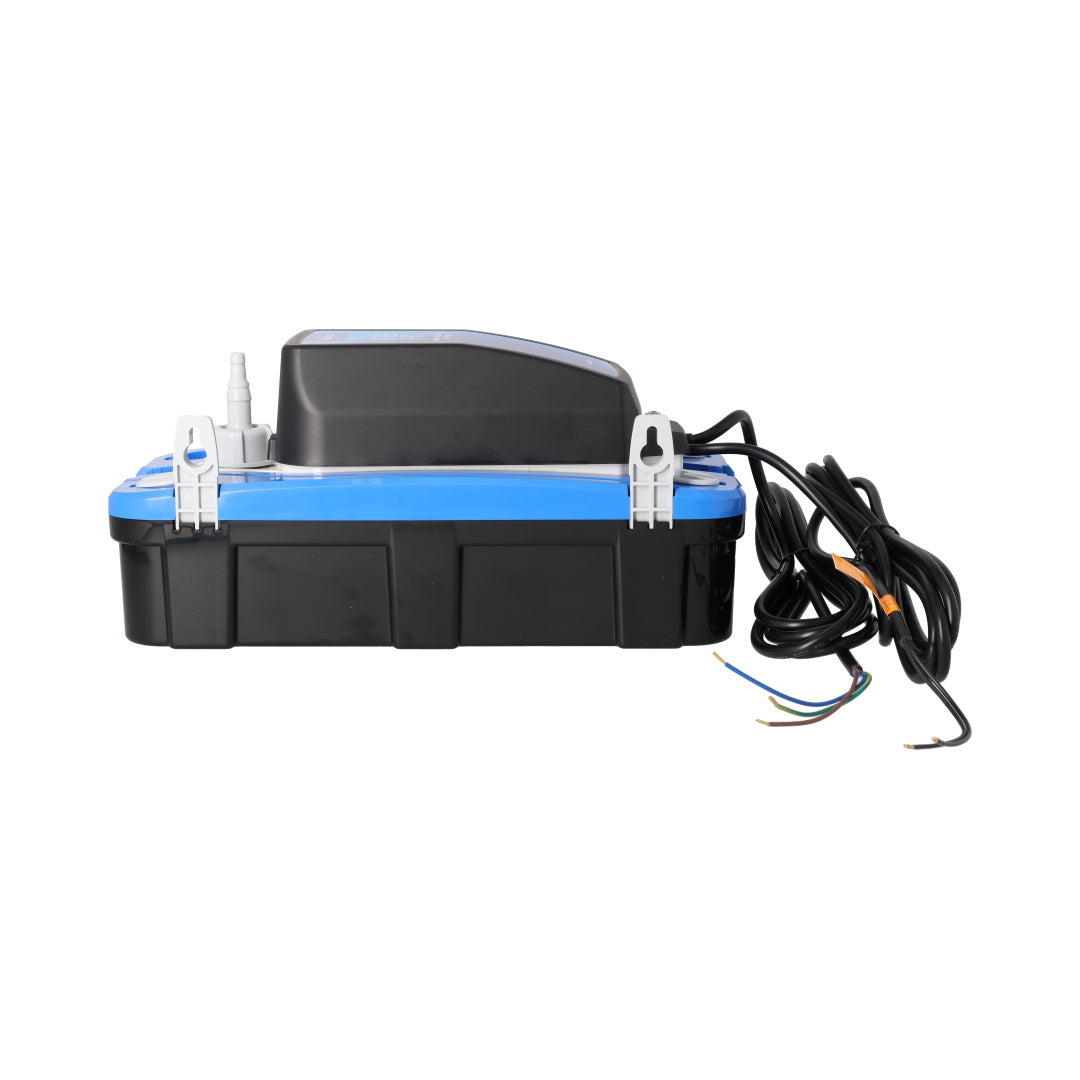

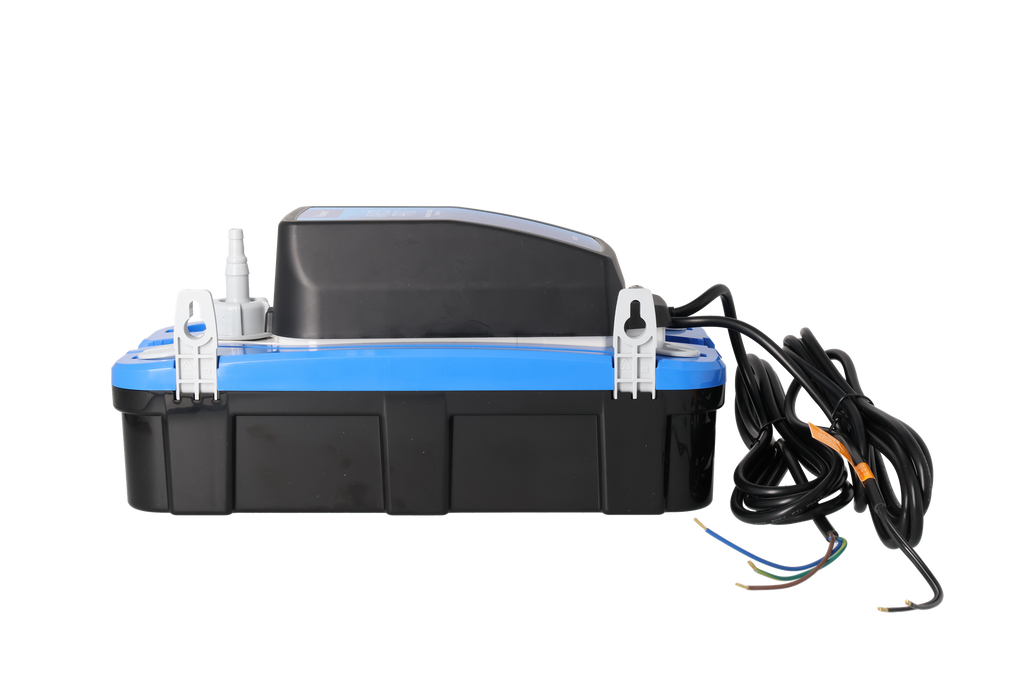

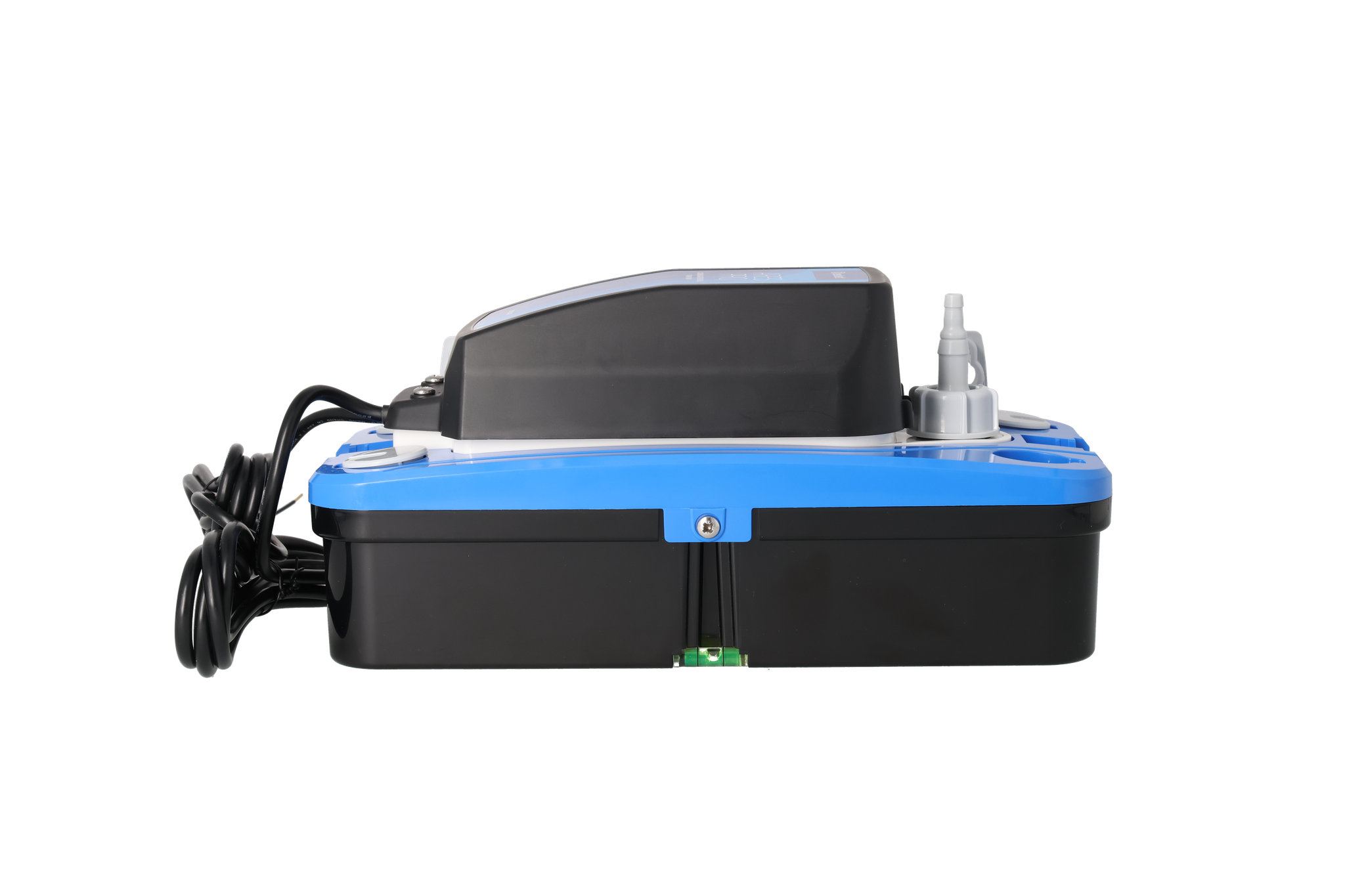

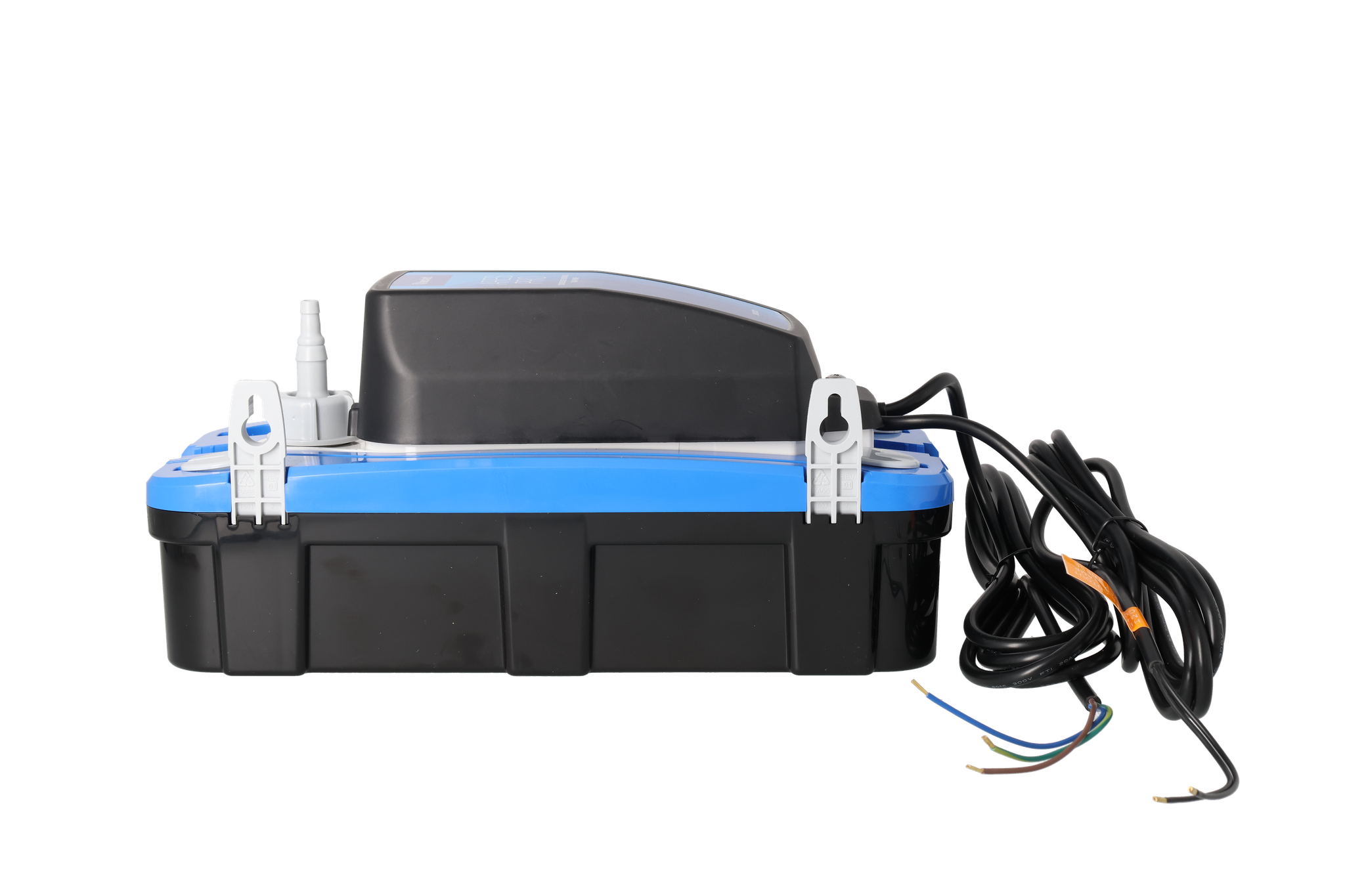

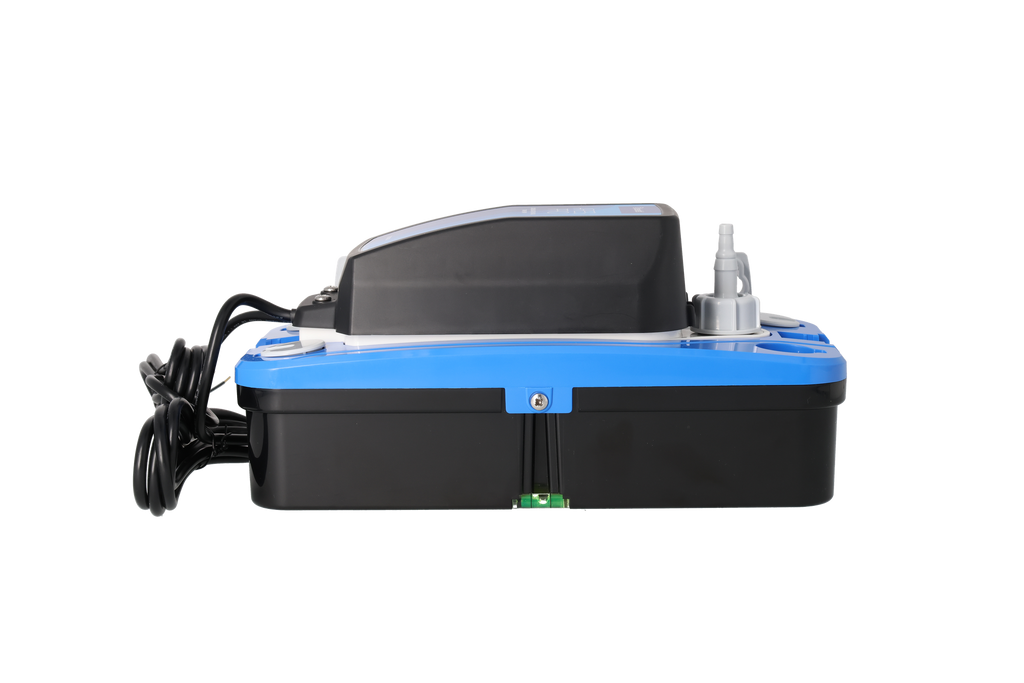

The Beckett ARES PRO isn’t just a pump — it’s a powerhouse built for battle. With a 320 L/h
max flow and 5m max head, this rugged unit is engineered to conquer the toughest retail and
light commercial HVAC demands. Armed with an easy-access tank and built-in spirit level the
ARES PRO delivers relentless performance where it matters most. P/N BK320220
SPECIFICATIONS
Max. flow 320 L/h @ 0m head
Max. rec. head 5m
Tank capacity 1.5L
Noise level (dB(A)@1m) 44 dB(A)
Power supply 230VAC,0.7A,80W,50Hz
Rated Non Continuous
Class I
Max. unit output 425 kW / 1.45m Btu/h
Max. ambient temp 40°C (104°F)
Max. water temp 40°C (104°F)
Inlets x4 21–27mm
Outlets 6mm & 10mm
IP Protection IP24
Safety switch 3A Normally closed
Thermal protection Yes
PRODUCT CODE
BK320220
KEY FEATURES
IP24 – Splash proof
Easy access tank
Built in spirit level
SUITABILITY
Up to 425 kW / 1.45m Btu/h
Ducted units; Floor standing & Chassis units;
Cassette units
Perfect for: retail and commercial environments
like gyms, restaurants and offices
IN THE BOX
ARES PRO tank pump
Rod mount and wall mount clips
Install manual
| Brand | ASPEN (CAT 80) |
| Dimensions | 285 x 144 x 134 |
| Max Flow | 320L/h and Max 5m head |
| Max Rec. Head | 5m |
| Max Suction Lift | n/a |
| Tank Capacity | 1.5L |
| Sound Level @ 1m | 44 dB(A) |
| Rated | Non continuous |
| Class | I appliance |
| Max Unit Output | 425kW / 1.45m Btu/h |
| Max Water Temperature | 40o C / 104o F |
| Discharge Tube | n/a |
| Inlet/Outlet | x4 21-27mm/6mm & 10mm |
| IP Rating | IP24 |
| Safety Switch | 3.0A Normally closed |
| Thermal Protection | Yes |
| Fully Potted | n/a |
| Self Priming | n/a |
| Power | 230 VAC, 0.8A, 50Hz |
| Guarantee | 1 Year |
