DV82 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit
DV82 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit
DV82 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit
Roll over image to zoom in Click on image to zoom
DV82 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit
DV82 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit
DV82 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit

DV82 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit

SKU: 90001655

Price:
£3,077.00 inc VAT

Description

DV82 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit Suitable for Dwelling Floor Area up to 184 m2

  • DV82 Entro V Kit Suitable for Dwelling Floor Area up to 184m2
  • SAP PCDB tested and listed
  • 300 m3 /h (83.3 l/s) maximum air flow rate @100Pa
  • Domestic and residential heat recovery ventilation system
  • Thermal efficiency capabilities of up to 85%
  • "2x ISO ePM Coarse 55% (G4) filters as standard with an extra supply air filter location for an optional ISO ePM1 60% (F7) - ISO 16890 compliant"
  • Suitable for left- and right-hand configurations
  • Can be installed in vertical mounting positions, on the wall or on the floor. Hanging brackets, screws, and feet are supplied with the unit
  • The unit has interchangeability of spigots position from top to the sides

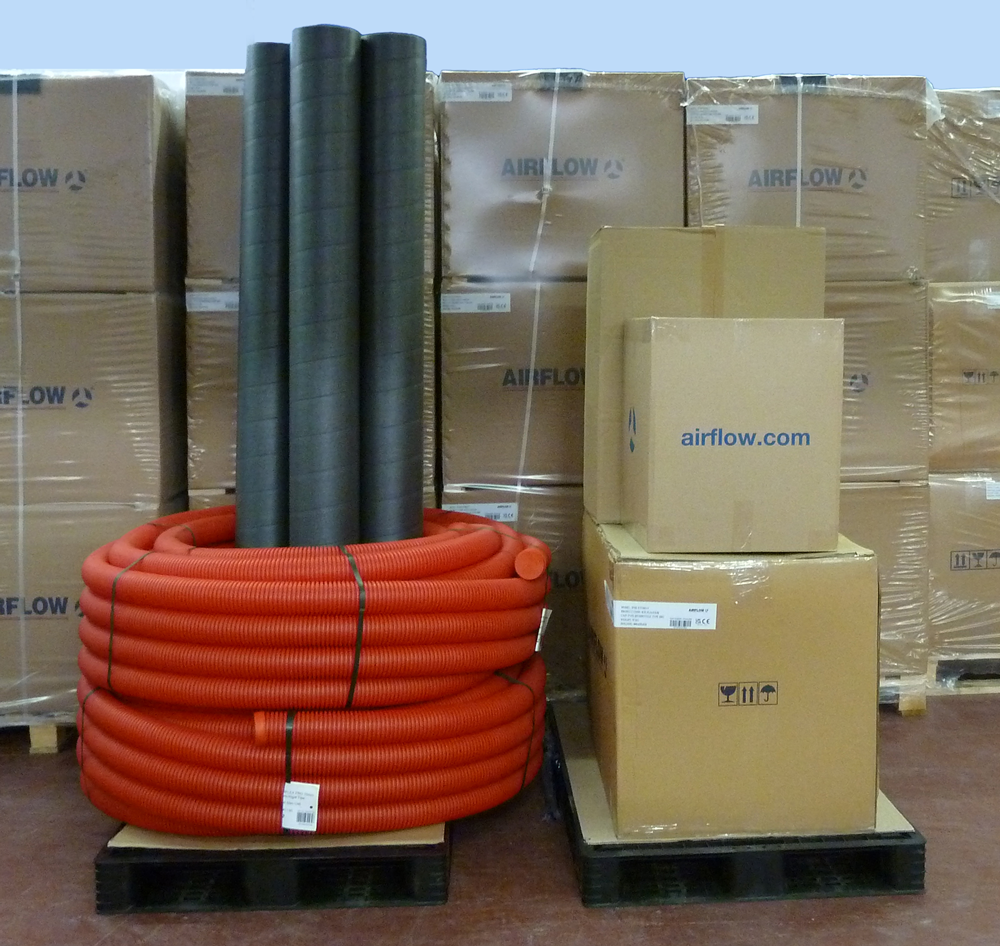

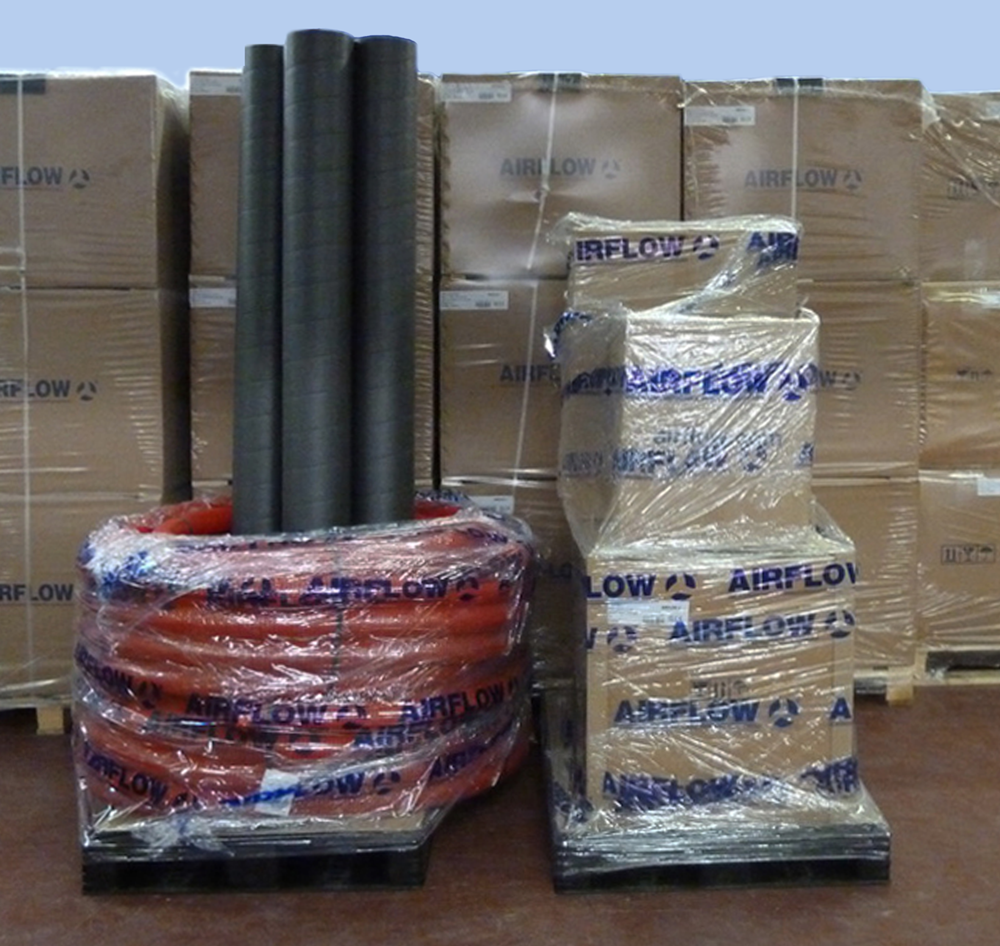

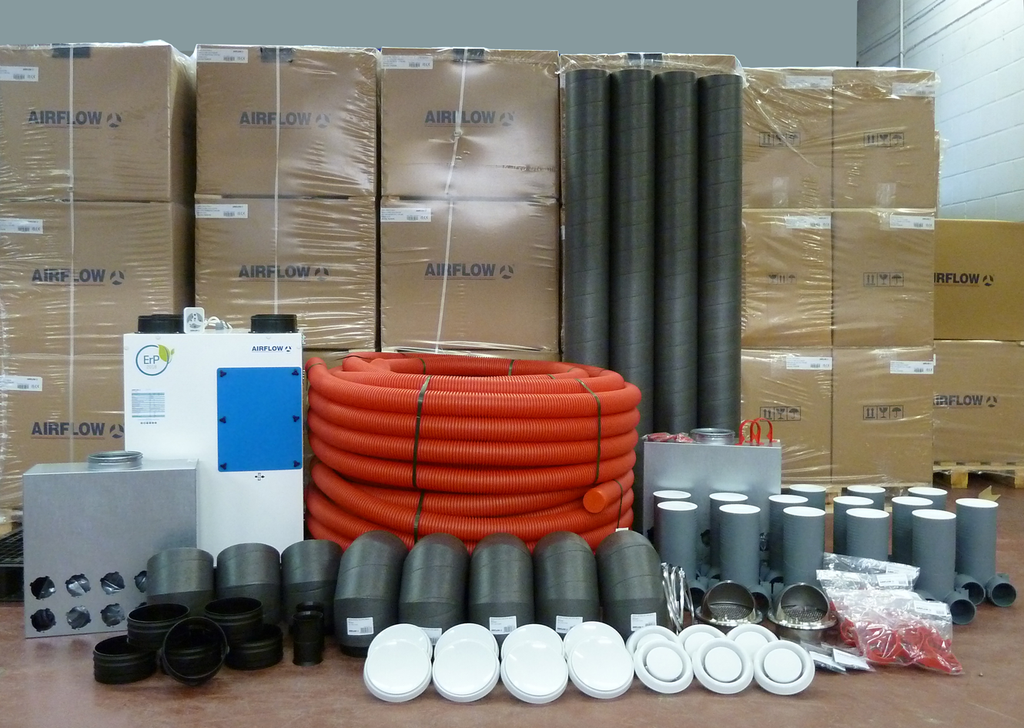

What's in the box?

  • 90001244 - DUPLEXVENT DV82 ENTRO-V x 1
  • 90001308 - ENTRO-V BASIC CONTROLLER x 1
  • 90000266 - 10-PORT DIST BOX (ROUND SPIGOTS) x 2
  • 9041130 - 75 MM X 50 M ROUND AIRFLEXPRO COIL* x 2
  • 9041132 - 75 MM CONNECTOR x 2
  • 9041133 - 75 MM PIPE SEALING RING (PACK OF 10) x 4
  • 51849404 - 150 MM / 6 IN ADJUSTABLE 60 - 325 MM CLAMP x 4
  • 90000250 - 78 MM 90º CEILING/WALL PLENUM x 14
  • 90000339 - 125 MM PLASTIC ADJUSTABLE SUPPLY VALVE x 8
  • 90000340 - 125 MM PLASTIC ADJUSTABLE EXTRACT VALVE x 6
  • 90000352 - AIRFLEXPRO ROUND CLIPS PK10 (RED) x 4
  • 90000506 - 160 MM STAINLESS STEEL ROUND COWL WITH MESH x 2
  • 90000465 - 160 MM X 2 M ISO PIPE x 4
  • 90000466 - 160 MM 45º ISO PIPE BEND x 3
  • 90000467 - 160 MM 90º ISO PIPE BEND x 5
  • 90000468 - 160 MM ISO PIPE CONNECTOR PLASTIC x 6
  • *The red round AirflexPro rolls can be supplemented by blue round AirflexPro rolls. *Red clips can also be supplemented by blue clips



    • BrandEpicAir
