• Four ways to install
• Compact & discreet
• Can be located in drain pan
• Easy maintenance
Up to 46kW / 157,000Btu/h
Ducted units
Floor standing & chassis units
Cassette units
Perfect for... Installation versatility
Description
MINI TANK CONDENSATE REMOVAL PUMP
The new and improved Mini Tank pump can be wall mounted, floor mounted, in-pan or suspended on M8 / M10 rod. Using piston technology this is a compact, powerful and multi functional tank pump.

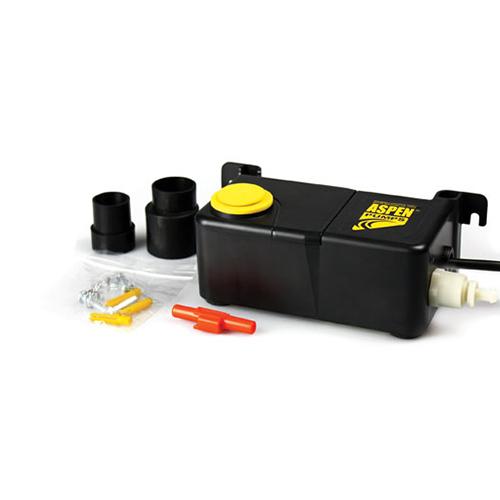

IN THE BOX:
• Mini Tank pump (including hard wired 1.5m power cable)
• x 2 Rubber adaptors (21.5mm & 31mm)
• Anti siphon device
• Fixing kit
• Install manual
| Brand | ASPEN (CAT 80) |
| Dimensions | 210 x 89 x 69 |
| Max Flow | 35L/h @ 0 head |
| Max Rec. Head | 15m |
| Max Suction Lift | n/a |
| Tank Capacity | 0.24L |
| Sound Level @ 1m | 35dB(A) |
| Rated | Non continuous |
| Class | II appliance |
| Max Unit Output | 46kW / 157,000Btu/h |
| Max Water Temperature | 40o C / 104o F |
| Discharge Tube | n/a |
| Inlet/Outlet | x2 22mm, 12mm & 27mm/6mm & 10mm |
| Safety Switch | 3.0A Normally closed |
| Thermal Protection | Yes |
| Fully Potted | Yes |
| Self Priming | Yes |
| Power | 230 VAC, 0.1A, 16W, 50/60Hz |
| Guarantee | 1 Year |
