• Extra quick to fit
• Compact & discreet
• Clear removable reservoir
• Ultra quiet operation
Up to 16kW / 54,000Btu/h
High wall mini split systems
Perfect for... Domestic use – where easy maintenance is key
Description

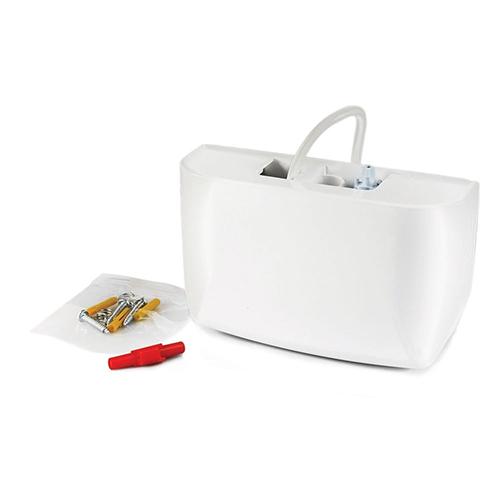

MINI BLANC® CONDENSATE REMOVAL PUMP
The ‘ultra quick fit’ Mini Blanc is designed to be fitted beneath high wall indoor units and offers easy access for future maintenance.
IN THE BOX:
• Mini Blanc pump (including hard wired 1m power cable)
• Anti siphon device
• Drain connector kit
• Fixing kit
• Install manual
| Brand | ASPEN (CAT 80) |
| Dimensions | 182 x 55 x 115 |
| Max Flow | 12L/h @ 0 head |
| Max Rec. Head | 10m |
| Max Suction Lift | n/a |
| Tank Capacity | 0.24L |
| Sound Level @ 1m | 21dB(A) |
| Rated | Non continuous |
| Class | II appliance |
| Max Unit Output | 16kW / 54,000Btu/h |
| Max Water Temperature | 40o C / 104o F |
| Discharge Tube | n/a |
| Inlet/Outlet | 20mm in, 6mm out |
| IP Rating | IP21 |
| Safety Switch | 3.0A Normally closed |
| Thermal Protection | Yes |
| Fully Potted | Partially |
| Self Priming | Yes |
| Power | 230 VAC, 0.11A, 19W 50/60Hz |
| Guarantee | 1 Year |
