• Top & side inlet options (if top inlet required, see FP2119)
• Large reservoir
• Stainless steel case
• Plug & play
Single and multiple refrigeration units
OEM
Perfect for... Multiple refrigeration units
Description

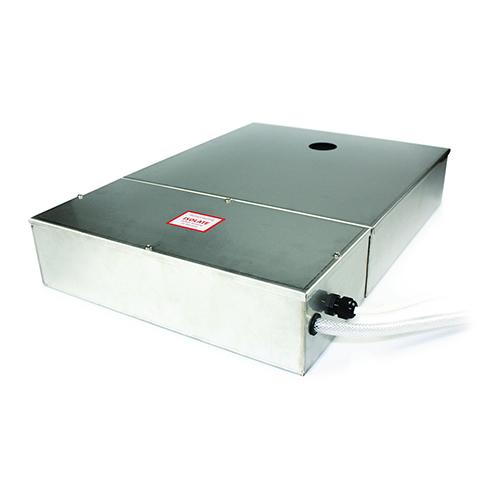

COLD CABINET CONDENSATE REMOVAL PUMP, SIDE INLET (IF TOP INLET REQUIRED, SEE FP2119)
A superior stainless steel refrigeration pump built to last. Designed to fit beneath refrigeration units, it pumps away defrost water and filters debris.
IN THE BOX:
• Cold Cabinet pump
• 2m Plug & play power cable
• 11/2” BSP connector (for 40mm ID waste pipe)
• Install manual
| Brand | ASPEN (CAT 80) |
| Dimensions | 585 x 400 x 100 |
| Max Flow | 225L/h @ 0 head |
| Max Rec. Head | 35m |
| Max Suction Lift | n/a |
| Tank Capacity | 11L |
| Sound Level @ 1m | 60dB(A) |
| Rated | Non continuous |
| Class | I appliance |
| Max Unit Output | n/a |
| Max Water Temperature | 40o C / 104o F |
| Discharge Tube | n/a |
| Inlet/Outlet | 50mm in/10mm out |
| IP Rating | IP21 |
| Safety Switch | 3.0A Normally closed |
| Thermal Protection | Yes |
| Fully Potted | n/a |
| Self Priming | n/a |
| Power | 230 VAC, 0.38A, 50/60Hz |
| Guarantee | 1 Year |
