•Features:
• Slim profile
• Proven 5th Gen Technology: Capactance Sensing & Rotary Diaphragm = Silence & Power
• Low maintenance
• Plug and play
• Up to 40kW / 136,000Btu/h
• Ducted units; floor standing & chassis units; high wall mini split systems
• Perfect for... smaller commercial and domestic applications, where silence is needed
Description
Product Description

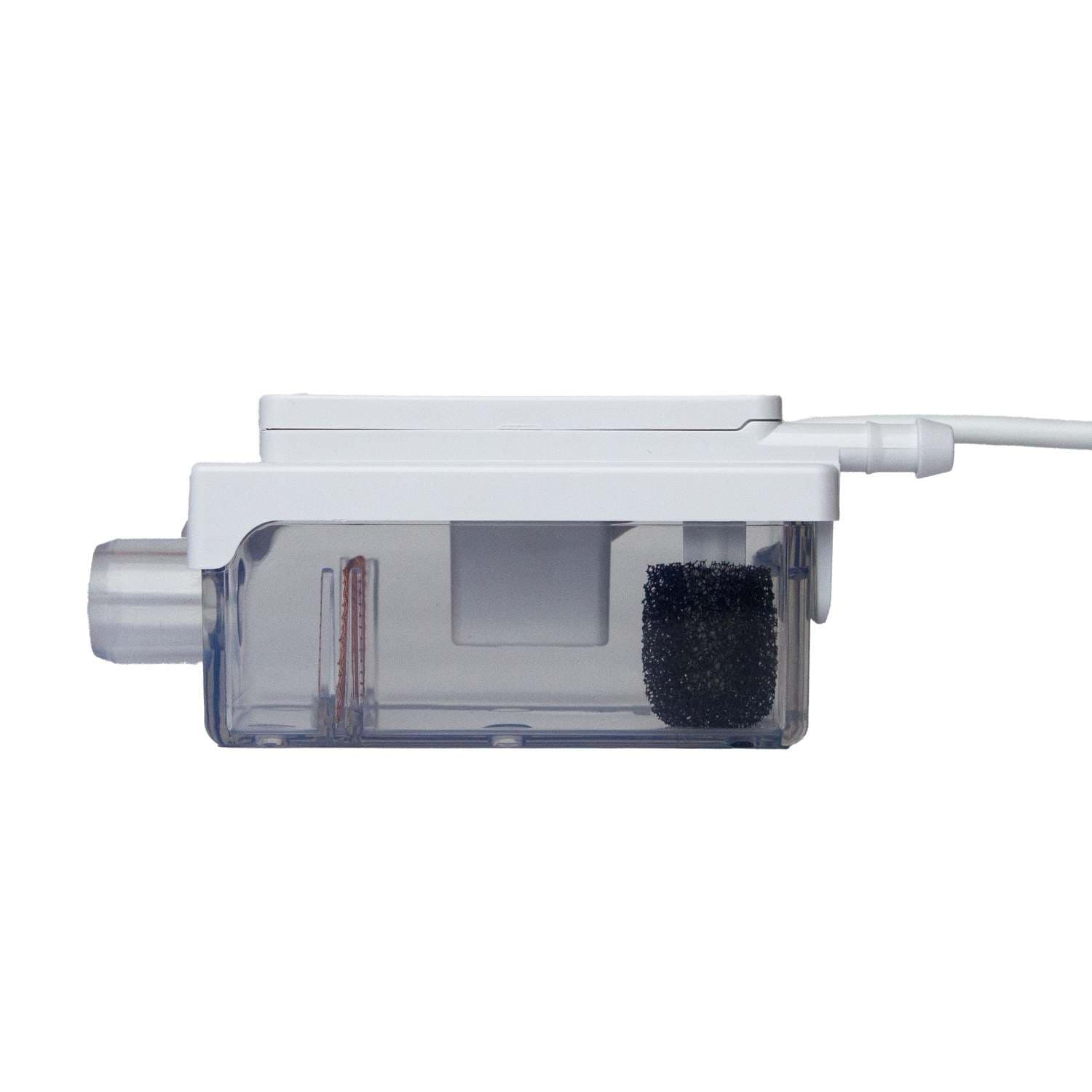

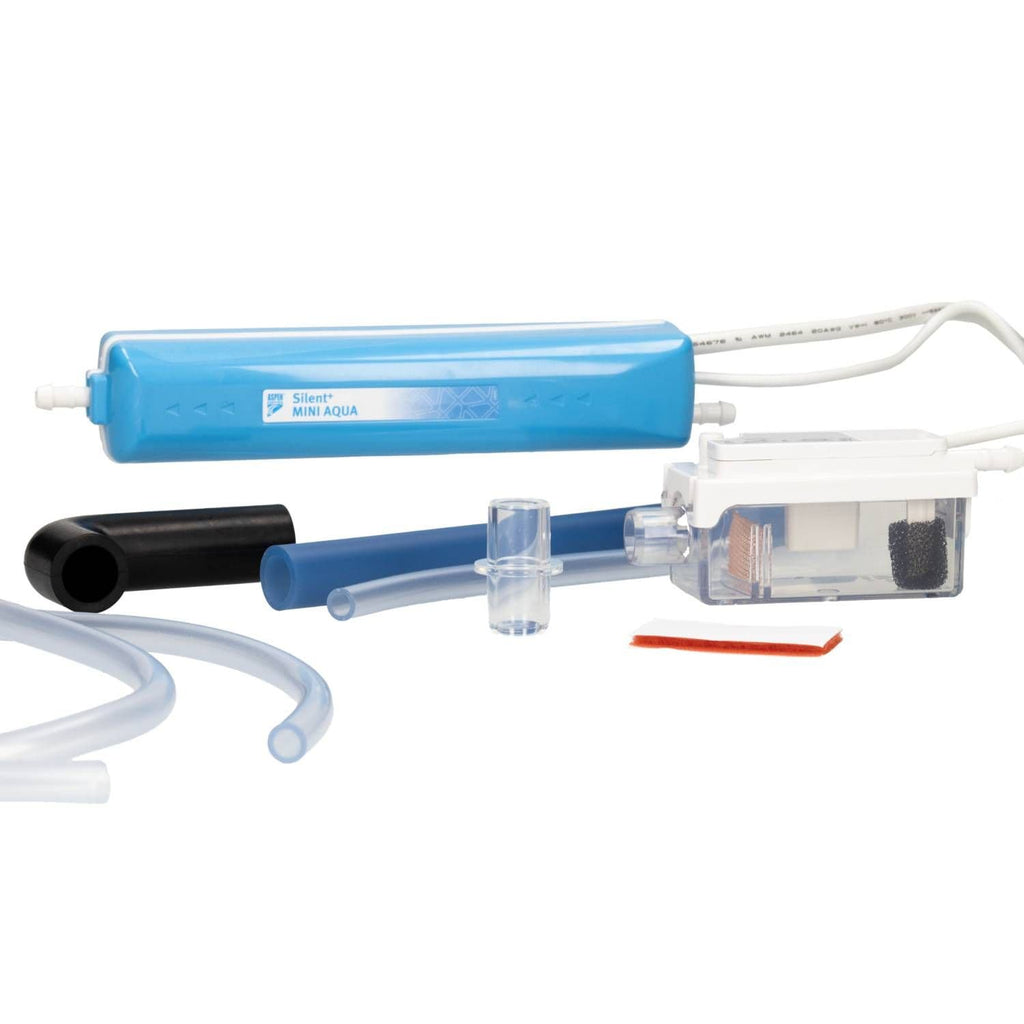

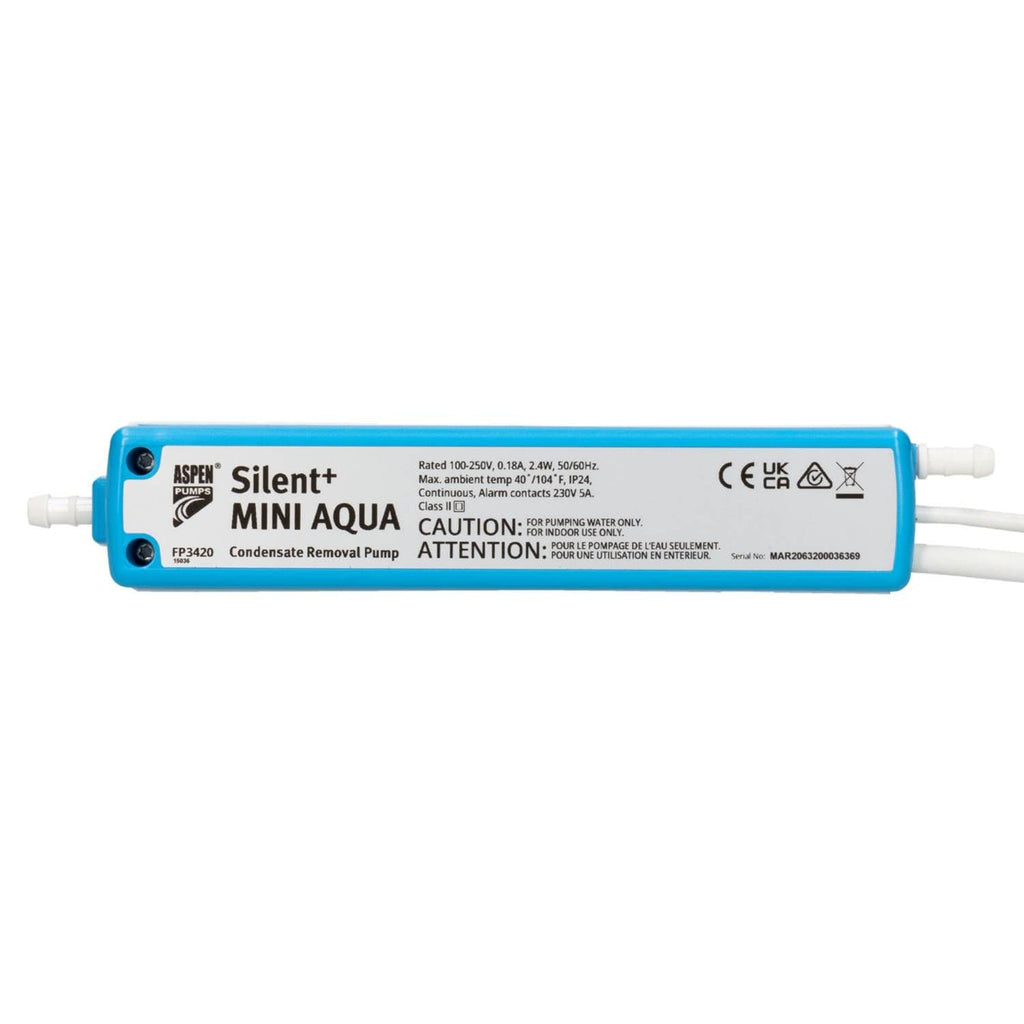

Aspen Silent+ Mini Aqua Pump Gen 5
The Silent+ Mini Aqua keeps its sleek and slender form offering unparalleled installation flexibility. It fits neatly into trunking and inside mini split units. Packed with our proven 5th Gen Technology, it’s unbeatable silence – a barely audible 16dB(A)*, combined with intelligent, adaptive flow rates – further extends pump life, maximises reliability and improves energy efficiency. Quietly brilliant.
Features:
• Slim profile
• Proven 5th Gen Technology: Capactance Sensing & Rotary Diaphragm = Silence & Power
• Low maintenance
• Plug and play
• Up to 40kW / 136,000Btu/h
• Ducted units; floor standing & chassis units; high wall mini split systems
• Perfect for... smaller commercial and domestic applications, where silence is needed
Specification:
• 35 L/h @ 0m head
• 10m max head
• 1.5m Max suction lift
• 16dB(A)
| Brand | ASPEN (CAT 80) |
| Max Flow | 35L/h @ 0 head |
| Max Rec. Head | 10m |
| Max Suction Lift | 2m |
| Tank Capacity | n/a |
| Sound Level @ 1m | 16dB(A) |
| Rated | Non continuous |
| Class | II appliance |
| Max Unit Output | 16kW / 54,000Btu/h |
| Max Water Temperature | 40o C / 104o F |
| Discharge Tube | 6mm ID |
| Inlet/Outlet | n/a |
| IP Rating | IP24 |
| Safety Switch | 3.0A Normally closed |
| Thermal Protection | Yes |
| Fully Potted | Yes |
| Self Priming | Yes |
| Power | 230 VAC, 0.1A, 16W, 50/60Hz |
| Guarantee | 1 Year |
