• Stainless steel motor shaft
• Max. working temperature 60°C with short infrequent excursions to 85°C (<5 min)
• Thermally protected maintenance free motor
• IP24 protection against water splashes
• Up to 200 kW / 682,000 Btu/h
• Suitable for acidic condensate withpH >2.2 and <2.2 with neutraliser
• Spirit level for ease of install

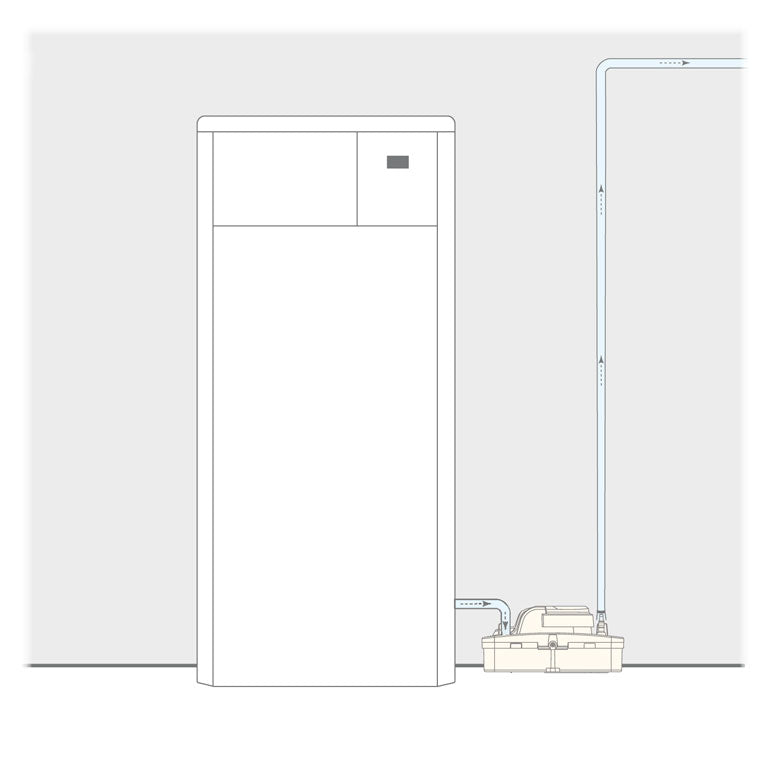

• Perfect for... Larger domestic & commercial condensing boilers
Description
FP3501 Endurance Boiler Pump
The Aspen Endurance has been ruggedised to maximise reliability in boiler applications. Its construction allows short infrequent temperature excursions to 85°C. It can handle pH > 2.2 for applications where a neutraliser is not required. Max head is 5.5m and flow is 550L/h / 9L/m / 0.15L/s.
IN THE BOX:
• Endurance pump
• 6m discharge tube (10mm ID)
• Outlet Adapter
| Brand | ASPEN (CAT 80) |
| Dimensions | 244 x 148 x 164 |
| Max Flow | 550L/h @ 0 head |
| Max Rec. Head | 5m |
| Max Suction Lift | n/a |
| Tank Capacity | 1.5L |
| Sound Level @ 1m | 44dB(A) |
| Rated | Non continuous |
| Class | I appliance |
| Max Unit Output | 200kW / 682,000 Btu/h |
| Max Water Temperature | 60o C / 140o F |
| Discharge Tube | n/a |
| Inlet/Outlet | x4 21-27mm in/6-10mm out |
| IP Rating | IP24 |
| Safety Switch | 3.0A Normally closed |
| Thermal Protection | Yes |
| Fully Potted | n/a |
| Self Priming | n/a |
| Power | 230 VAC, 0.8A, 50Hz |
| Guarantee | 1 Year |
• Stainless steel motor shaft
• Max. working temperature 60°C with short infrequent excursions to 85°C (<5 min)
• Thermally protected maintenance free motor
• IP24 protection against water splashes
• Up to 200 kW / 682,000 Btu/h
• Suitable for acidic condensate withpH >2.2 and <2.2 with neutraliser
• Spirit level for ease of install
• Perfect for... Larger domestic & commercial condensing boilers
