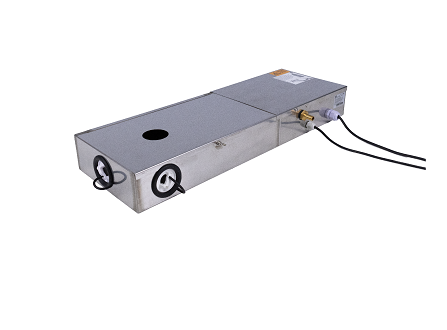

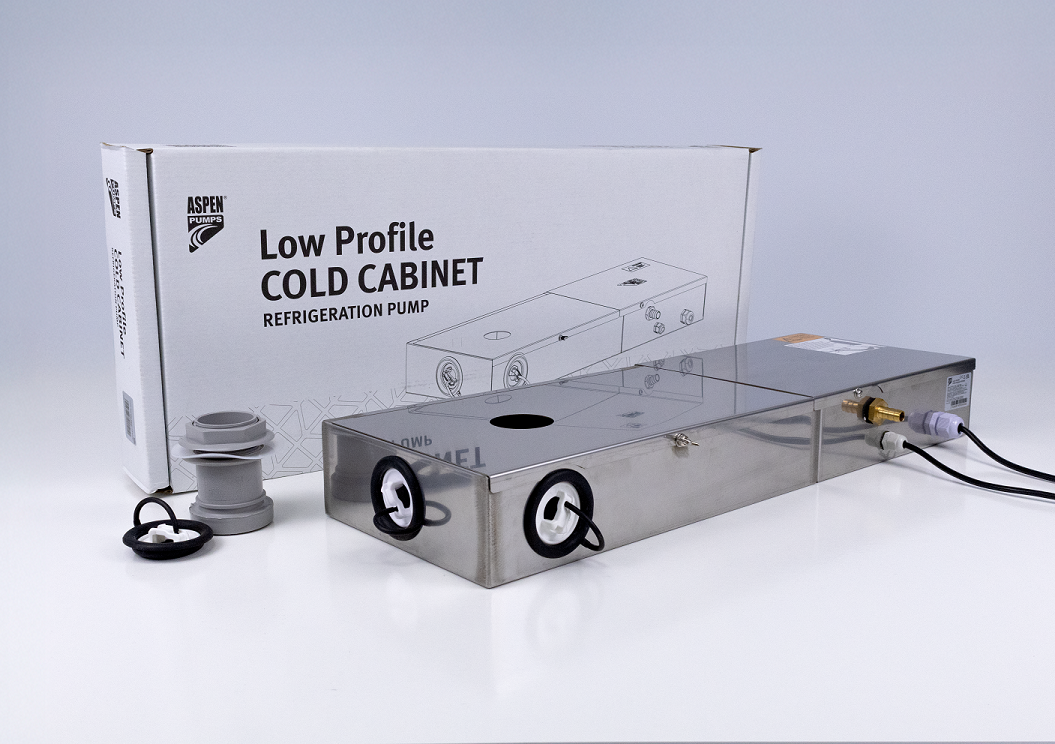

FP3560 ERRP Low Profile Cold Cabinet Refrigeration Pump
Made from robust stainless steel, this pump is extremely easy to install and maintain. With a feature designed to keep waterways moving, reducing the opportunity for biofilm to settle, the pump is placed directly below retail refrigeration cabinets removing water during the defrost cycle.
• Robust abrasion resistant stainless steel casing
• Multiple inlets for flexible installation (top, end & both sides)
• Integrated jet flow dispersal system to reduce biofilm build up
• Shallow 75mm height, lower than traditional dairy units
• Single and multiple refrigeration units, OEM
• Perfect for... multiple refrigeration units with shallow access
Specification :-
Data Based :@ 230 VAC 50Hz
Max. flow : 190 L/h @ 0 head
Max. rec. head : 35m
Tank Capacity : 4.2L
dB (a) : 60 dB(A)
Power supply : 100~240V AC 50/60Hz
Rated : Non continuous
Class : II appliance
Max. water temp : 40°C / 104°F
Inlets : 40mm in
Outlets : 10mm out
IP Protection : IPX4
Safety switch : 3A NC/NO
Thermal protection : ✓
| Brand | ASPEN (CAT 80) |
| Class | I appliance |
