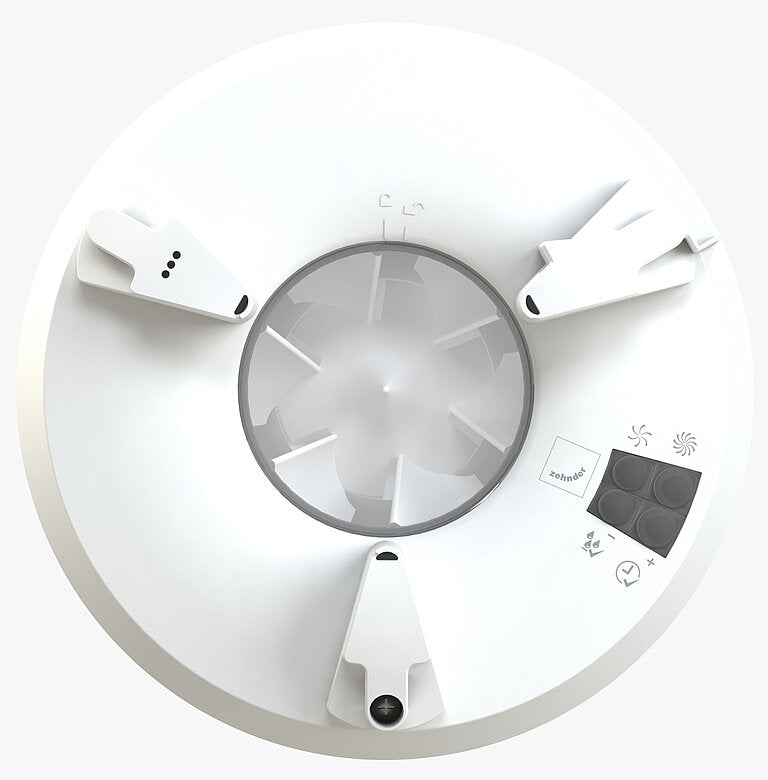

Zehnder Unity CV2.1B

Unity CV2.1B is the latest smart continuously running decentralised Mechanical Extract Ventilation fan (dMEV) from Zehnder that revolves around ‘a one product concept’ which can be applied to all wet rooms including kitchen, bathroom, utility and WCs.

With an ultra-low energy efficient motor and mixed flow impellor, the Unity CV2.1B has been designed to provide low energy cost effective continuous ventilation, resulting in a fan that not only is a discreet solution with very low running noise but it also contributes to improving indoor air quality.

Fitted with a front facing button feature for easy commissioning , the Unity CV2.1B ensures compliance on-site providing a fuss-free installation for both new build and refurbishment projects. This model has been designed for simple in-use function with trickle and boost operation only.

BENEFITS

• Low energy – using as little as 0.54 watts in operation, delivering low running costs / energy consumption, making it ideal for supporting building regulations regarding reducing carbon emissions in new build projects;
• Low noise - Unity CV2.1B offers ultra-quiet ventilation as low as 7.9dB(A) when running in low speed mode, eliminating nuisance noise for occupants;

• Designed as a ‘one fan, any room, all applications’ solution, it can be installed in all wet rooms, removing the need for large ducting networks and high background ventilation requirements (window vents) within planned new build and maintenance programmes;
• Easily installable on walls, windows or ceilings with minimal disruption to existing infrastructure due to the compact 68mm spigot design, which is ideal for shallow ceiling voids, maximizing space efficiency;
• Suitable for use with ComfoTube 110 mm semi-rigid ductwork (CV2.1HTCTA110), the CV2.1B is also available as part of a quick release kit which enables easy removal from its fittings, for quick and efficient access to the fan for maintenance and cleaning, without the electrical wiring concerns;
• Ease of commissioning – unique 100% front facing variable airflow feature, conveniently achieved using the + and - buttons, providing easy access and simple commissioning once the fan is wired and installed. The Unity CV2.1B also features an automatic ‘lock-out’ to prevent tampering of airflow setup;
• Refined and sleek design helps Unity CV2.1B to blend in with its environment;
• IPX5 for wall and IPX4 for ceiling installations and CE / UKCA marked ensures compliance with safety regulations, offering peace of mind for both installers and occupants.
• 3 year warranty
