Airflow iCON - eco15S

AirflowSKU: ICON15S-ECO-72683701-WHITE

Cover Colour Option: White
Price:
Sale price£146.21 inc VAT
  • Low voltage SELV fan
  • Manual on/off controls operated via a light or remote switch
  • 35 dBA
  • IPX4 Rated
  • 3 Years Guarantee




Description

iCON 15 is ideal for toilets, en-suites, and small bathrooms. The circular design means no squaring up is required, adding to the already simple installation procedure and the iris shutter design makes switching on and off almost silent and helps reduce external noise ingress.

The iCON eco 15S  has manual on/off controls operated via a light or remote switch.

Low voltage (100/240v AC transormer to 12v DC) designed to operate with reduced voltage and so increase the safety element for the user

iCON 15 has a a 3year warranty,is designed to provide ventilation levels that comply with the latest Building Regulations, is 230-240volt 50hz, IPX4 rated with a flow rate up to 68m3/hr (19l/s).

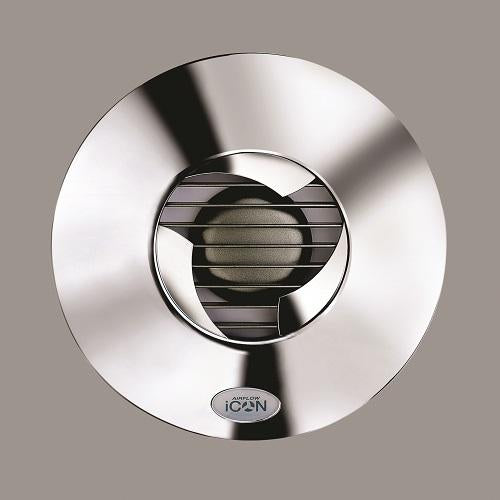

The white iCON 15 cover can also be changed so as to blend in better with the aesthetics of the room it is in. The choices are: Anthracite, Chrome, Sandstone and Silver.

An external 3A fuse is required for each fan unit.The product is fully compliant with the following safety standards: CE2004/105//EMC Directives and LVD 2006 195/EC. Switches for fans should be selected and sited in accordance with BS7161:2008.

Box Contains

1 x Complete Fan

1 x Low voltage adaptor

1 x Instructions

1 x Screws and Fixings

BrandAirflow
DeliveryNext Day
Dimensions197 x 197 x 40
Fan LocationWall or Ceiling
Sound35dB(A)
Performance79 (22)
Integral ShuttersYes
IP RatingIPX4
Maximum Duct Run3m or less
Power7.5W
Room TypeToilet/Bathroom
Running ModeIntermittent
Safety ZoneZone 1, 2 and Outside
Spigot Dimension100
Guarantee3 Years
