- Low Voltage SELV fan
- Adjustable run-on timer of 1 - 30 minutes
- Pull cord, remote or light for timer activation
- 35 dBA
- IPX4 Rated
- 3 Years Guarantee

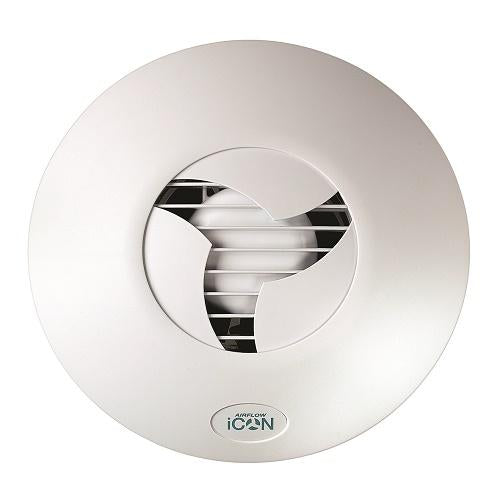

iCON 15 is ideal for toilets, en-suites, and small bathrooms. The circular design means no squaring up is required, adding to the already simple installation procedure and the iris shutter design makes switching on and off almost silent and helps reduce external noise ingress.
The iCON eco 15-S PCTS has an adjustable run-on timer 1- 30 mins. Pull cord, remote or light for timer activation.
Low voltage (100/240v AC transormer to 12v DC) designed to operate with reduced voltage and so increase the safety element for the user
iCON 15 has a a 3year warranty,is designed to provide ventilation levels that comply with the latest Building Regulations, is 230-240volt 50hz, IPX4 rated with a flow rate up to 68m3/hr (19l/s).

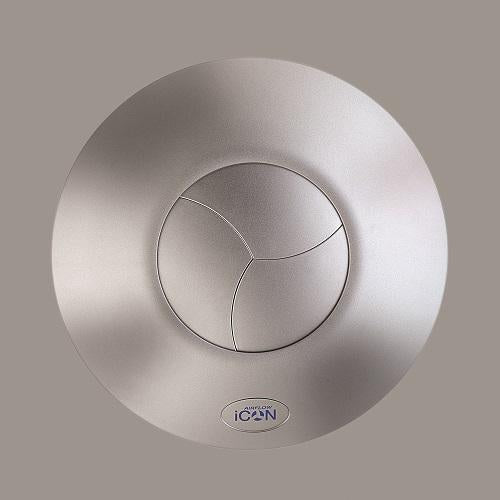

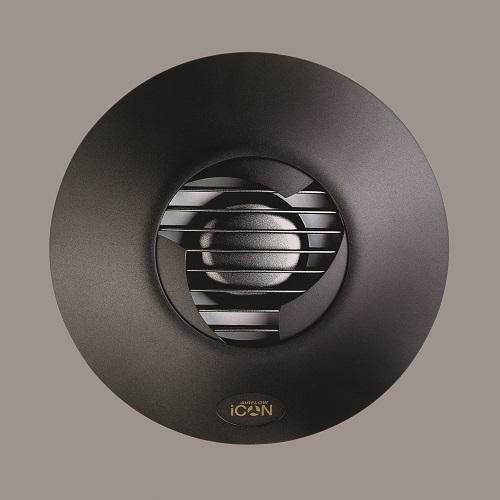

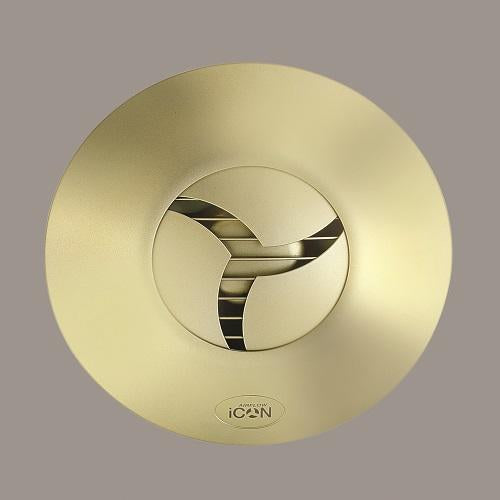

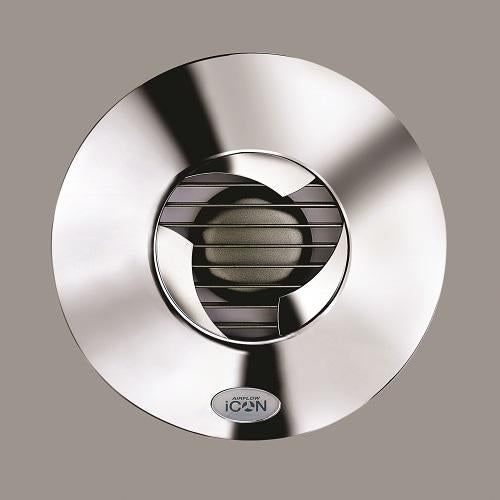

The white iCON 15 cover can also be changed so as to blend in better with the aesthetics of the room it is in. The choices are: Anthracite, Chrome, Sandstone and Silver.
An external 3A fuse is required for each fan unit.The product is fully compliant with the following safety standards: CE2004/105//EMC Directives and LVD 2006 195/EC. Switches for fans should be selected and sited in accordance with BS7161:2008.
1 x Complete Fan
1 x Low voltage adaptor
1 x Instructions
1 x Screws and Fixings
|Dimensions||197 x 197 x 40|
|Fan Location||Wall or Ceiling|
|Maximum Duct Run||3m or less|
|Safety Zone||Zone 1, 2 and Outside|
