Adjustable humidistat, adjustable run-on timer and optional use momentary pull cord timer activation
3 year warranty

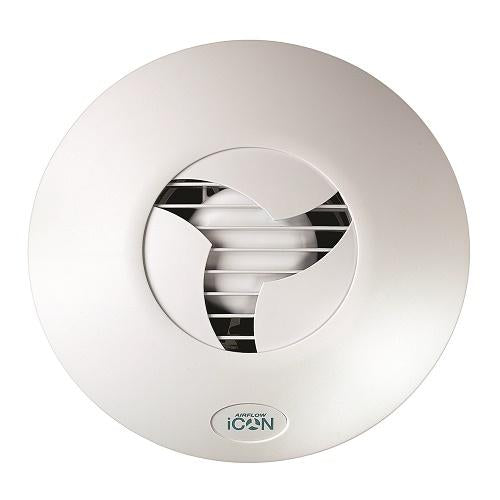

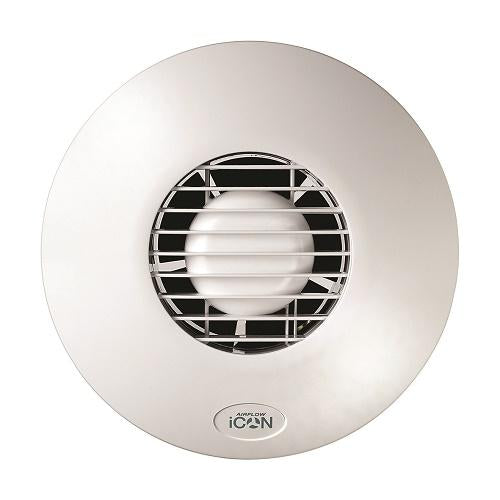

iCON 15 is ideal for toilets, en-suites, and small bathrooms. The circular design means no squaring up is required, adding to the already simple installation procedure and the iris shutter design makes switching on and off almost silent and helps reduce external noise ingress.
The iCON 15-HTM has adjustable humidity control between 40% - 90% RH, adjustable run-on timer, and an optional use momentary pull cord to activate the timer
iCON 15 has a a 3year warranty,is designed to provide ventilation levels that comply with the latest Building Regulations, is 230-240volt 50hz, IPX4 rated with a flow rate up to 68m3/hr (19l/s).
The white iCON 15 cover can also be changed so as to blend in better with the aesthetics of the room it is in. The choices are: Anthracite, Chrome, Sandstone and Silver. An external 3A fuse is required for each fan unit.The product is fully compliant with the following safety standards: CE2004/105//EMC Directives and LVD 2006 195/EC. Switches for fans should be selected and sited in accordance with BS7161:2008.
1 x Complete Fan
1 x Instructions
1 x Screws and Fixings
|Brand||AIRFLOW SPV VENT (CAT 50)|
|Dimensions||197 x 197 x 40|
|Fan Location||Wall or Ceiling|
|Maximum Duct Run||3m or less|
|Safety Zone||Zone 1, 2 and Outside|
