Description
AVAILABLE TO PRE-ORDER FOR DELIVERY JUNE 2024

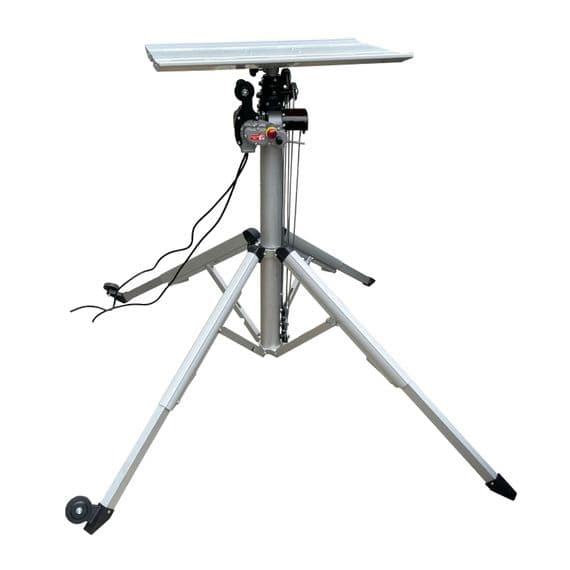

JAVAC Edge 240V Portable Lifter - 3.7m Lift
Ideal for Air Conditioning and Refrigeration
Product Description
The JAVAC EDGE 240v Portable Lifter is the ultimate solution designed to assist with
the lifting and positioning of heavy equipment in the HVAC industry. The lifter
is suitable for use with Condensers, Evaporators, Ductwork, Air Handling Units,
Pipe Work plus many other uses.
Featuring extendable legs, wide platform base and robust design the lifter offers unparalleled suitability and adaptability for almost all HVAC lifting and positioning requirements.
Designed to endure tough conditions allowing you to work safely, securely and efficiently!
240V Portable Lifter: JAV-1353
1 x Platform
1 x Telescoping mast
1 x Pulley with pulley cover
1 x Steel cable
1 x Motor and gearbox
1 x Sliding ring
4 x legs
1 x Wheel
1 x Lever to select going up or down
1 x Emergency Stop Push Button
1 x Trigger button to control speed
| Model: | JAV-1353 |
| Operation Voltage: | 220V ~ 240V @ 50/60Hz |
| Operation Current: | 4 Amp |
| Motor Duty: | S3 30% |
| Plug type: | EU plug and UK plug adaptor |
| Max. Load Capacity: | 130KGS (3.0 M height) 120KGS (3.7 M height) |
| Basic Height: | 1m |
| Lifting Height: | 3.69m |
| Standard Platform: | 75 x 44 CM |
| Operating size: | 115 x 118 CM |
| Length of controlling cable: | 4 M |
| Length of power cord: | 2.7 M |
| Ambient Temperature: | -5 °C to 45 °C |
| IP level: | IP43 |
| Packaging box size: | 102 x 28 x 33 CM |
| Net weight: | 30.5 KGS (Machine 24 KGS + Platform 4.8 KGS) |
| Gross weight: | 33 KGS |
| Bag: | Bag with wheels |
| Accessories: | Manual Handle available |
| Safety Standard: | EN 60204-1:2018 / EN ISO 12100:2010 |
| Compliance: | WEEE / CE / UKCA |
| Brand | JAVAN (CAT 93) |
