Description
Javac Edge Velo-X Twin Cylinder Recovery unit
Faster than the competition!
Powerful brushless DC motor and 1.25 HP bring the fastest variable speeds on the market. Recovery times of up to 377 kg liquid/hour! Gaining you time and money. 1.25 HP twin-head compressor. Dual voltage – 240V and 110V.

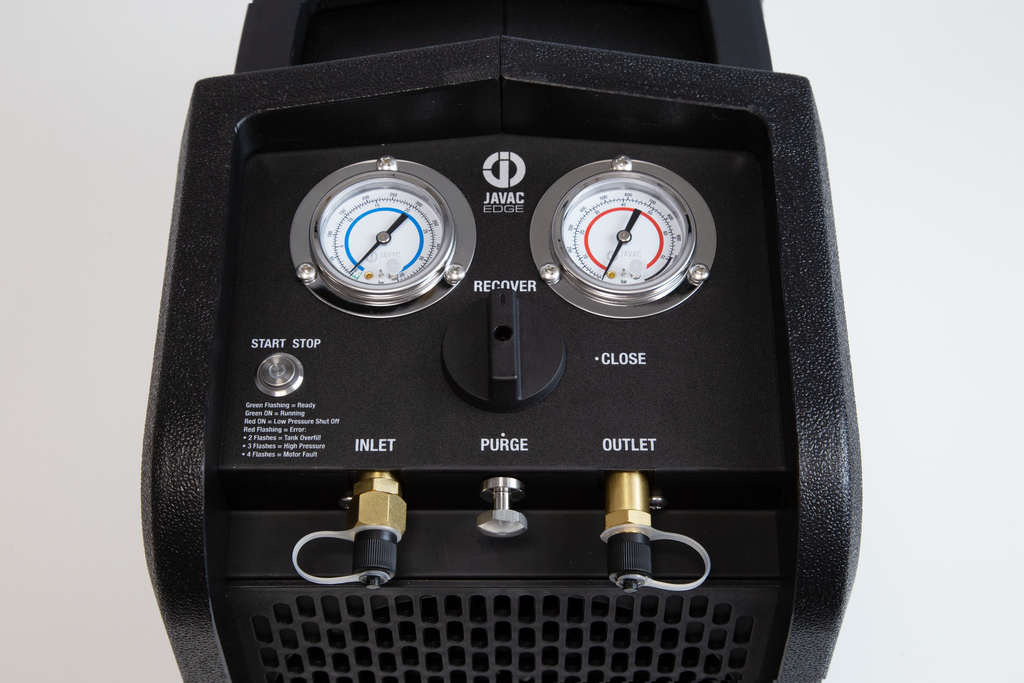

Easy to read, dual gauge monitoring shows tank and system pressures with integrated low-pressure auto-off switch.
Intelligent spark-proof power on / off button with LED indicator which shows real-time recovery and machine status.
Spark-proof 5m hard wired cable Convenient and strong Velcro loop keeps cables stowed away and tidy.
Low maintenance, maximum efficiency
Easy access ports with in-built reusable mesh particulate filters for suction ports. These can be easily cleaned or replaced.
2 Cylinder, oil-less, reciprocating air-cooled compressor.
Longer life, low friction, greater efficiency.

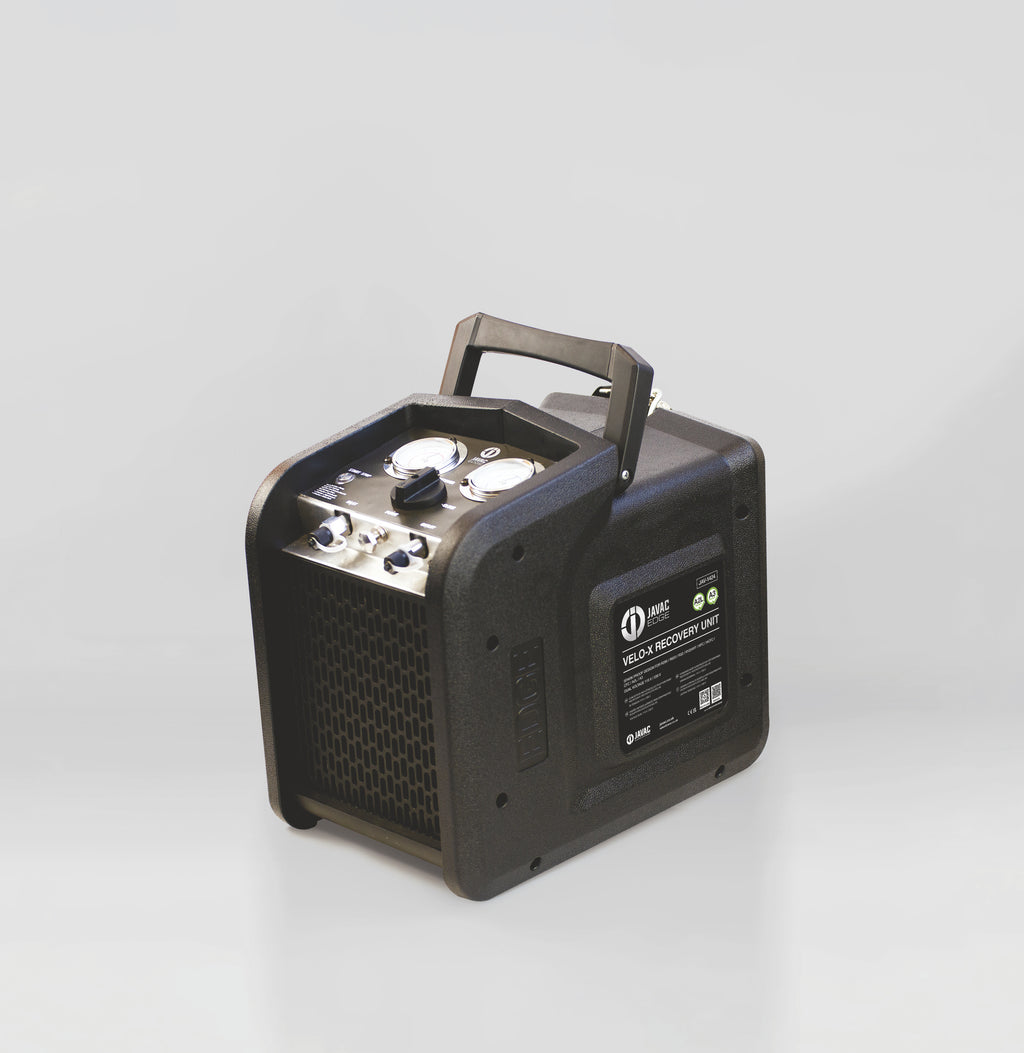

Lightweight, portable and water resistant
Under 14 kg and 2 kg lighter than our Altima. The Velo-X
has robust detachable shoulder strap and strong hinged
carry handle. Sturdy construction designed to withstand
the elements.
The JAVAC Edge Velo-X. Our first recovery unit fully compatible
with all A2L and A3 refrigerants. Industry leading recovery rates and
JAVAC reliability giving our quickest and most efficient solution yet.
• R32 / R1234YF / HFC / HCFC / CFC / HFO / A2L / A3
• Lightweight complete with shoulder strap
• LED indicator showing recovery and machine status
• 5m hard wired cable and spark proof switch
• Dual gauge monitoring shows the tank and system pressures
with integrated low pressure auto-off switch.
• Intelligent safety sensing
• Includes reusable mesh particulate filter for the suction port
which can be easily cleaned or replaced
Recovery Rates (R410a)
Liquid 377kg per hour
Vapour 20kg per hour
Push / Pull 408kg per hour
Description Part No.
Velo-X Twin Cylinder Recovery Unit JAV-1424
Power supply Universal Voltage 100-240VAC 50/60Hz
Motor size 1.25 HP
Motor Type Variable Speed Brushless DC,
1500-3000 rpm
Maximum current 12.0 amps
Compressor 2 Cylinder Oil-less Reciprocating,
Air Cooled
High Pressure
Cutout (Manual reset) 550 PSIG
Operating
Temperature Range 0 to 49 °C
Dimensions 370 × 245 × 325 mm
Weight 13,8 kg
| Brand | JAVAC(CAT 93) |
