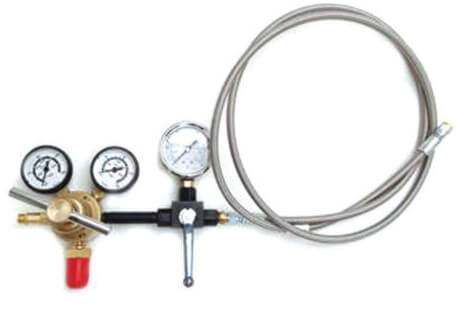

Javac Nitrogen Pressure Test Rig

Javac JE Nitrogen Pressure Testing N2-RIG - RS-750-RIG

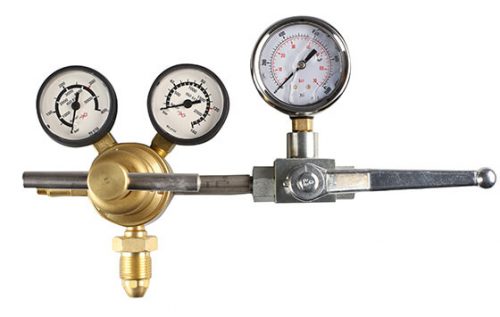

The RS-750 JAVAC Nitrogen regulator and test rig has been designed specifically for use in the high pressure testing applications required for refrigeration and air conditioning systems operating with R410a.

The RS-750 Pressure Test Rig has been developed using tried and tested materials combined with the latest design technology, resulting in a robust regulator that is ideally suited to the rigours of daily use.

Specifications:

• 300 bar maximum inlet pressure
• 0-50 bar (0-750psi) outlet pressure range
• Designed for testing refrigeration systems that use R410a refrigerant gas in accordance with BS EN 378.
• 1/4" SAE flare outlet connection to allow for rapid connection to industry standard hose.
• Safety relief valve to prevent regulator over pressurisation.
