Titon H200 Q Plus Eco, 204mm x 60mm Ports, Summer Bypass, Intelligent Humidity

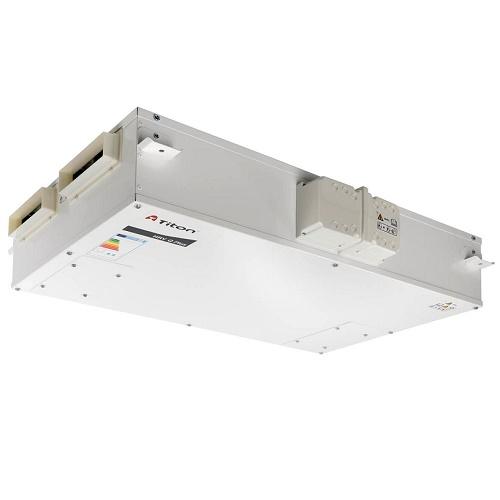

H200 Q Plus

Mechanical Ventilation with Heat Recovery unit (MVHR)

The H200 Q Plus continuously running horizontal whole-house ventilation unit with heat recovery is independently tested by the BRE. It is ideal for flats due to its low profile.

Combining low power consumption and a highly efficient heat exchanger, this unit enhances SAP performance via Appendix Q and remains versatile enough in size to be equally functional in large through to small apartments alike.

The H200 Q Plus Range of MVHR unit comes in two different models; the ‘HMB’ & ‘B’ models which are part of our Eco version range.  Each set out to accommodate our customers’ needs.

The H200 Q Plus comes in Eco versions only with a 100% airflow diverting Summer Bypass, recognised and listed in the UK Product Characteristics Database. They also include intelligent humidity options and can be fitted with the auralite® status indicator, aura-t™ (HMB and B models), auramode® and aurastat® controllers (B models only).

• • Low profile
  • Extremely low Specific Fan Power; down to 0.55 W/l/s
  • Highly efficient heat exchanger; up to 83%
  • Airflow up to 83 l/s (300 m3/h at 100 Pa)
  • Accepts either 204mm x 60mm rectangular ducting, 150mm or 160mm diameter ducting, no adaptors required Intelligent controller, quick and easy to commission
  • Fully adjustable boost overrun timer 0-60 minutes; use with non-latching (momentary) switches to prevent unit from being accidentally left in boost mode
  • Intelligent frost protection, reduction of supply air rates prevents damage to heat cell in low temperatures
  • Setback facility to reduce ventilation where local regulations allow
  • Volt free switching control
  • IP33 rating
  • ISO Coarse 65% (G4) filters as standard, ISO ePM1 55% (F7) as an option
  • Pleated cardboard frame filters
  • Independent fan adjustment
  • Effective in reducing pollutants in the home and improving Indoor Air Quality IAQ), therefore reducing the risk of Toxic Home Syndrome
  • Intelligent Summer Bypass & humidity controls - hot air bypasses the heat exchanger during high external temperatures so as heat not introduced back into the property
  • SUMMERboost® - supply and extract fans will run at full speed once Summer Bypass mode has been activated to combat overheating
  • Compatible with Eco-aura range; aurastat®, auramode® and aura-t™ (TP536) controllers and auralite® (TP519) status indicator
