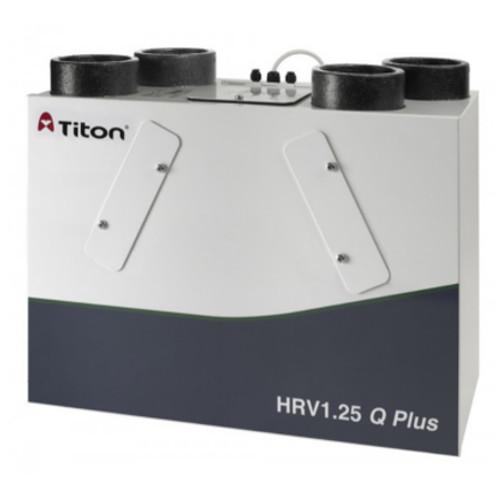

Titon HRV1.25 Q Plus Eco aura Left-Handed

SKU: TP416B/LH

Price:
Sale price£1,710.00 inc VAT

Specific Fan Power 0.53 W/l/s
Thermal Efficiency to 91%
Accepts 100mm or 125mm 125mm Ø
 ducting
Compatible with Compatible with aurastat and auramode controller
Quick Access Filter Door
G3 filters standard, G4 optional
Fully adjustable boost overrun timer 0-60 minutes
Volt free switching control
Intelligent controller, quick and easy to commission
Summer Bypass & humidity controls
SUMMERboost facility
Duct heater control (requires independent power supply)
Available in left and right handed configurations
BMS compatible via RS485

Description

The handing of the unit – left or right hand, refers to the side the ducts to/from atmosphere are positioned. i.e. a left hand (LH) unit will have the intake and exhaust ducts to/from atmosphere positioned on the left hand side of the unit and vice versa for the right hand

Dimensions: 600mm wide x 430mm high (excluding ports) x 285mm deep (295mm with mounting bracket)
Weight: 16kg
Finish: White Paint
Materials:
Housing: Zintec sheet steel housing, powder coated white
Internals: Expanded polypropylene (EPP)
Heat Exchanger: Polystyrene
Internal insulation: Closed cell foamed Nitrile rubber, class ‘O’ fire rating
Standard filtersGrade G3 synthetic filters, flame resistance to BS5588
Guarantee period: 3 years (UK only)
Electrical: 230V ~ 50/60Hz, 3A fuse
Installation: Install in accordance with Good Practice, such as the Domestic Ventilation Compliance Guide (England & Wales) and the Residential Ventilation Association recommendations
Maintenance
: Service and filter clean/replacement subject to local environment - see Product Ma
