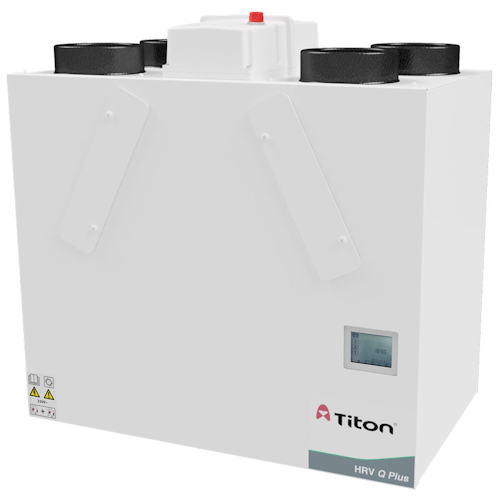

Titon HRV1.6 Q Plus Eco Aura Left/Right-Handed with Aura T Programmable Touch Screen Controller – MVHR Unit

Titon HRV1.6 Q Plus Eco Aura Left/Right-Handed with Aura T Programmable Touch Screen Controller – MVHR Unit

The Titon HRV1.6 Q Plus Plus Eco Aura Left/Right-Handed with Aura T Programmable Touch Screen Controller is a Titon mechanical ventilation with heat recovery (MVHR) product for residential whole-home ventilation. This listing identifies the specific HRV range and included controls to help installers and homeowners select the appropriate model.

Product SKU: TP419B2_T. Check the current manufacturer datasheet for design airflow, system pressure, dimensions, duct connections and controller compatibility before ordering.

HRV1.6 Q Plus

Mechanical Ventilation with Heat Recovery unit (MVHR)

The enhanced capacity HRV1.6 Q Plus continuously running whole-house ventilation unit with heat recovery is independently tested by the BRE maintains an ultra compact size despite its improved results.

Combining extremely low power consumption and a highly efficient heat exchanger, this unit enhances SAP performance via Appendix Q, and yet remains versatile enough in size to be equally as functional in larger apartments as it is in medium to large sized dwellings.

The Eco versions offer a 100% airflow diverting Summer Bypass, recognised and listed in the UK Product Characteristics Database.

• Extremely low Specific Fan Power; down to 0.49 W/l/s
• Highly efficient heat exchanger; up to 89%
• Airflow up to 100l/s (359 m3/h) at 100 Pa
• Accepts 125mm diameter ducting, no adaptors required
• IP32 rating
• Boost Overrun Timer
• Boost Inhibit
• Internal Humidity Sensor
• Filter Change Alert
• Four Fan Speeds
• Summer Bypass - hot air bypasses the heat exchanger during high external temperatures so as heat not introduced back into the property
• SUMMERboost® - supply and extract fans will run at full speed once Summer Bypass mode has been activated to combat overheating
• Volt Free Switch Inputs (x3)
• Frost Protection Program
• Multiple Internal Temperature Sensors
• Left or right handing onsite option available (delivered as LH as standard)
• On-Board and Off-Board Control Options (please refer to controls product page for more information)
• Dwelling Supply Air Comfort Control (reduces the amount of cold air being supplied to dwelling)
• Dwelling Supply/Extract Protection
• Balanced Frost Protection
• Live Switch Inputs (x2)
• Programmable touch screen controller covering normal running, frost, filters, boost, summer and faults as well as power saving and humidity.
