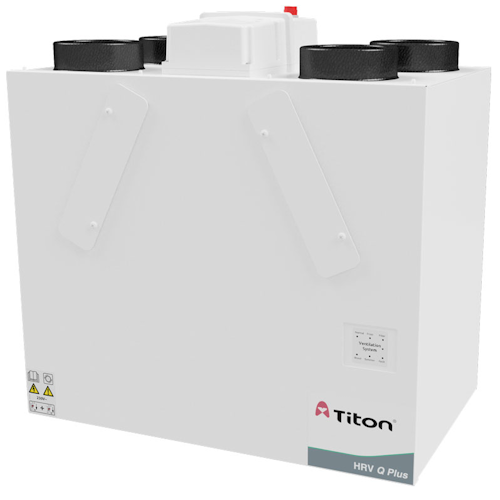

Titon HRV1.6 Q Plus Eco HMB with Aura-Lite Status Indicator Left/Right-Handed – MVHR Unit

Titon HRV1.6 Q Plus Eco HMB with Aura-Lite Status Indicator Left/Right-Handed – MVHR Unit

The Titon HRV1.6 Q Plus Eco HMB with Aura-Lite Status Indicator Left/Right-Handed MVHR Unit is a Titon mechanical ventilation with heat recovery (MVHR) unit for residential ventilation projects. The exact model and controller configuration are important when comparing units or selecting a replacement.

SKU: TP409HMB_LT. Check the manufacturer's current datasheet for design airflow, dimensions, duct connections and control compatibility before ordering.

Titon HRV1.6 Q Plus Eco HMB with Aura-Lite Status Indicator Left/Right-Handed MVHR Unit

The Titon HRV1.6 Q Plus Eco HMB with Aura-Lite Status Indicator Left/Right-Handed MVHR Unit is a mechanical ventilation with heat recovery (MVHR) system for residential ventilation. This listing identifies the exact Titon range and control package to help installers, designers and homeowners compare compatible options.

Product SKU: TP409HMB_LT. Check the current Titon manufacturer datasheet for design airflow, available pressure, dimensions, handedness, controls and installation requirements before ordering.

HRV1.6 Q Plus

Mechanical Ventilation with Heat Recovery unit (MVHR)

The enhanced capacity HRV1.6 Q Plus continuously running whole-house ventilation unit with heat recovery is independently tested by the BRE maintains an ultra compact size despite its improved results.

Combining extremely low power consumption and a highly efficient heat exchanger, this unit enhances SAP performance via Appendix Q, and yet remains versatile enough in size to be equally as functional in larger apartments as it is in medium to large sized dwellings.

The Eco versions offer a 100% airflow diverting Summer Bypass, recognised and listed in the UK Product Characteristics Database.

• Extremely low Specific Fan Power; down to 0.49 W/l/s
• Highly efficient heat exchanger; up to 89%
• Airflow up to 100l/s (359 m3/h) at 100 Pa
• Accepts 125mm diameter ducting, no adaptors required
• IP32 rating
• Boost Overrun Timer
• Boost Inhibit
• Internal Humidity Sensor
• Filter Change Alert
• Four Fan Speeds
• Summer Bypass - hot air bypasses the heat exchanger during high external temperatures so as heat not introduced back into the property
• SUMMERboost® - supply and extract fans will run at full speed once Summer Bypass mode has been activated to combat overheating
• Volt Free Switch Inputs (x3)
• Frost Protection Program
• Multiple Internal Temperature Sensors
• Left or right handing onsite option available (delivered as LH as standard)
• On-Board and Off-Board Control Options (please refer to controls product page for more information)
• Complete with Aura-Lite status indicator covering normal running, frost, filters, boost, summer and faults.
