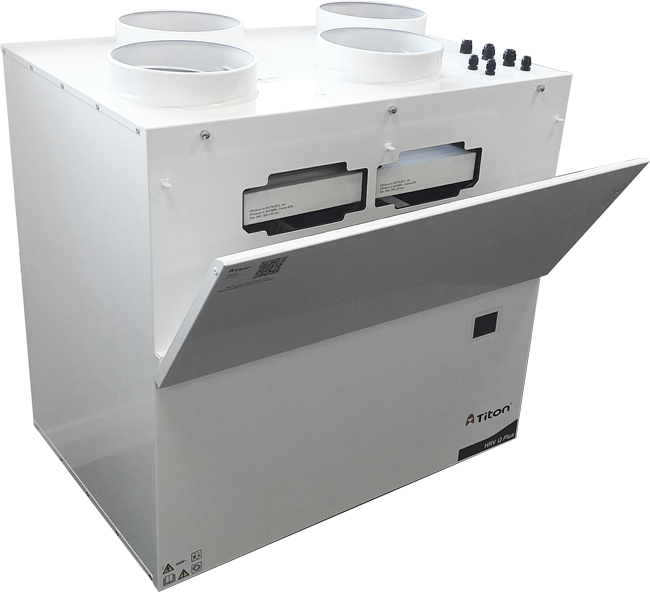

Titon HRV20 HE Q Plus HMB c/w aura-t Left-Handed

SKU: TP652HMB/544-T

Sale price£2,720.44 inc VAT


The handing of the unit – left or right hand, refers to the side the ducts to/from atmosphere are positioned. i.e. a left hand (LH) unit will have the intake and exhaust ducts to/from atmosphere positioned on the left hand side of the unit and vice versa for the right hand

The new HRV20 HE Q Plus continuously running whole-house ventilation unit with heat recovery (MVHR) has been specifically designed to expand Titon’s current HRV range by offering airflows of up to 178 l/s (640m3/h).

Combining extremely low power consumption and a highly efficient heat exchanger (92%) specifically designed to enhance SAP performance via Appendix Q and can be incorporated into larger apartments or dwellings.

The HRV20 HE Q Plus Range of MVHR unit comes in two different models; the ‘HMB’ & ‘B’ models which are part of our Eco version range.  Each set


Features & Benefits

  • Highly versatile compact unit
  • Extremely low Specific Fan Power of 0.48 W/l/s
  • Highly efficient heat exchanger; up to 92%
  • Airflow up to 178 l/s (640 m3/h) at 100 Pa.  Enthalpy unit airflow up to 183 l/s (657 m3/h) at 100 Pa
  • Accepts 200mm diameter ducting
  • Intelligent frost protection, stepped reduction of supply air rates prevents HRV unit from freezing
  • ISO Coarse 65% (G4) bypass filter set fitted as standard. ISO Coarse 65% (G4)/ISO ePM1 75% (F7) available on request.
  • Fully adjustable boost overrun timer 0-60 minutes; can be used with non-latching (momentary) switch to prevent unit from being accidentally left in boost mode
  • Volt free switching control
  • Intelligent controller, quick and easy to commission
  • aura-t™ fitted on board as standard for HMB models and optional for B models
  • Quick fix mounting bracket
  • IP33 rating
  • Patented
  • Independent fan adjustment
  • Effective in reducing pollutants in the home and improving Indoor Air Quality (IAQ), therefore reducing the risk of Toxic Home Syndrome
  • Available in left and right handed configurations

Enthalpy Option Available –  Features & Benefits

  • Airflow up to 183 l/s (657 m3/h) at 100 Pa
  • No transfer of gases or pollutants – only heat and water vapour are transferred by the membrane
  • Long life cycle – permanent transmission parameters
  • Minimum leakage
  • Optimum flow behaviour, low pressure loss
  • Frost- and heat-proof
  • High, sensitive and latent transmission rate
  • Antimicrobial (Microban® – integrated hygiene protection)
  • Can be cleaned using water
  • European manufactured heat cell

Technical Information

Product Codes and Specific Features

Eco Versions:

Eco HMB Models:

  • Fitted with aura-t™ controller on board as standard
  • Intelligent Summer Bypass & humidity controls
  • SUMMERboost® facility
  • Available in left and right handed configurations
  • Compatible with auralite® HRV (TP518) status indicator and aura-t™ (TP539) controller
  • Fitted with removable filter covers on the front panel
            BrandTITON CVU CAT 63
            DeliveryNext Day
