Description
-

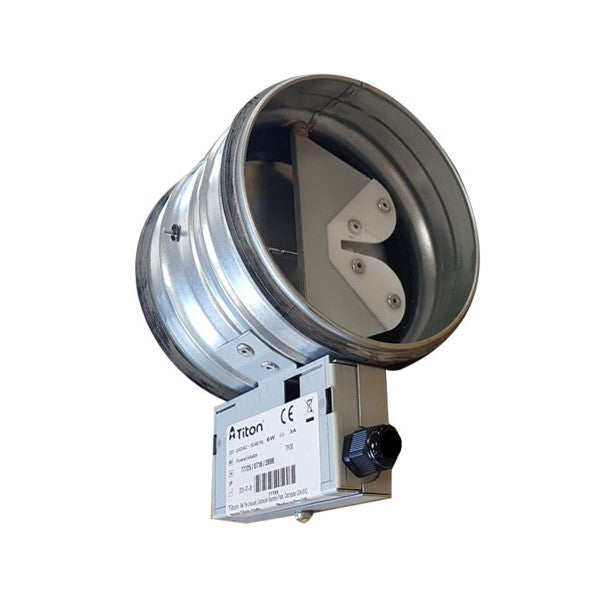

Titon TP630 - Ø150 Powered Backdraught Actuator for use with the TP625 Titon Purge Ventilation Unit

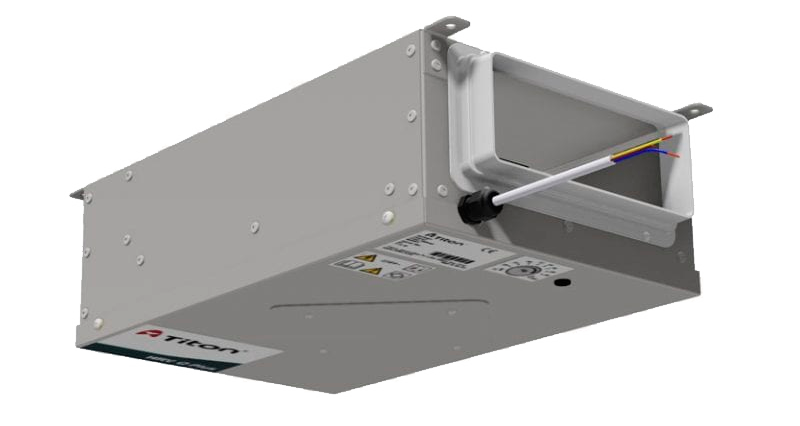

Titon’s Purge ventilation unit has been designed to satisfy the Building Regulations Part F 2010 (update 2022) requirement for purging as set out in *Appendix B. It allows the rapid removal of stale, odorous and poor quality air from the dwelling allowing a healthier more comfortable environment to be reinstated.
Purge ventilation can also be used to improve thermal comfort.
*Manually controlled intermittent ventilation of rooms or spaces at a relatively high rate to rapidly dilute high concentrations of pollutants and/or water vapour from occasional activities, equivalent to 4 air changes an hour.
Features & Benefits
- Low Profile
- Airflow up to 161 l/s (579 m3/h)
- High efficiency EC fan
- 100% variable speed control for commissioning set point
- Accepts 220 x 90mm rectangular ducting
- For use in rooms up to 45m²
- 90° configurable option
- In line configurable option
- Simple 1 setting setup
- Light weight for easy handling
- Easy and quick to install
- IPX2 water resistant
Product Codes and Options
TP625 – Purge Unit
TP629 – Ø150 Back Draft Damper
TP630 – Powered Damper Actuator
TP631 – Ceiling Cover Kit (Ø150 only)
TP502 – Boost Switch (latching)Standards
EU RoHS Directive Compliant.
Conforms to requirements of EC council Directives relating to electromagnetic Compatibility and Electrical Safety:
2006/95/EC (LVD), 2004/108/EC (EMC).
EN 60335-1:2002/A2:2006, EN 60335-2- 80:2003/A1:2004. CE Marked.Specification
Dimensions: 510mm long x 300mm Wide x 150mm Deep
Weight: 7.2Kg.
Finish: Natural Zintec.
Materials: Zintec sheet steel casing.
Guarantee Period 2 Years.
Electrical: 230V – 50/60Hz, 3A fuse.
Maintenance: Service subject to local environment – see product manual.
Brand | Titon |
