- Quick and easy installation due to clever perpendicular roof penetration
- Designed to fit to Aerfoam 160 mm & 200 mm (adaptors to fit to 150 mm and 180 mm)
- High performance, optimised pressure loss
- Smart design prevents snow and rain ingress by higher outlet and smart drains
Description

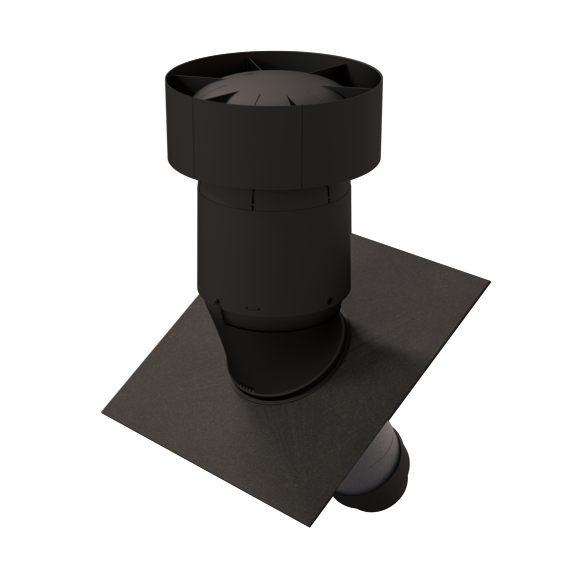

The Ventus is a new generation of clever insulated roof terminals developed for heat recovery ventilation systems for residential and small commercial buildings. It comes in four installation kits for either a range of pitched or flat roof applications. Excellent performance on pressure loss comes standard and contributes to a higher ventilation efficiency and lower energy consumption thus saving costs for the homeowner. The Ventus is a smart and sustainable choice for heat recovery ventilation systems and a range of other ventilation applications.
- Quick and easy installation due to clever perpendicular roof penetration
- Designed to fit to Aerfoam 160 mm & 200 mm (adaptors to fit to 150 mm and 180 mm)
- High performance, optimised pressure loss
- Smart design prevents snow and rain ingress by higher outlet and smart drains

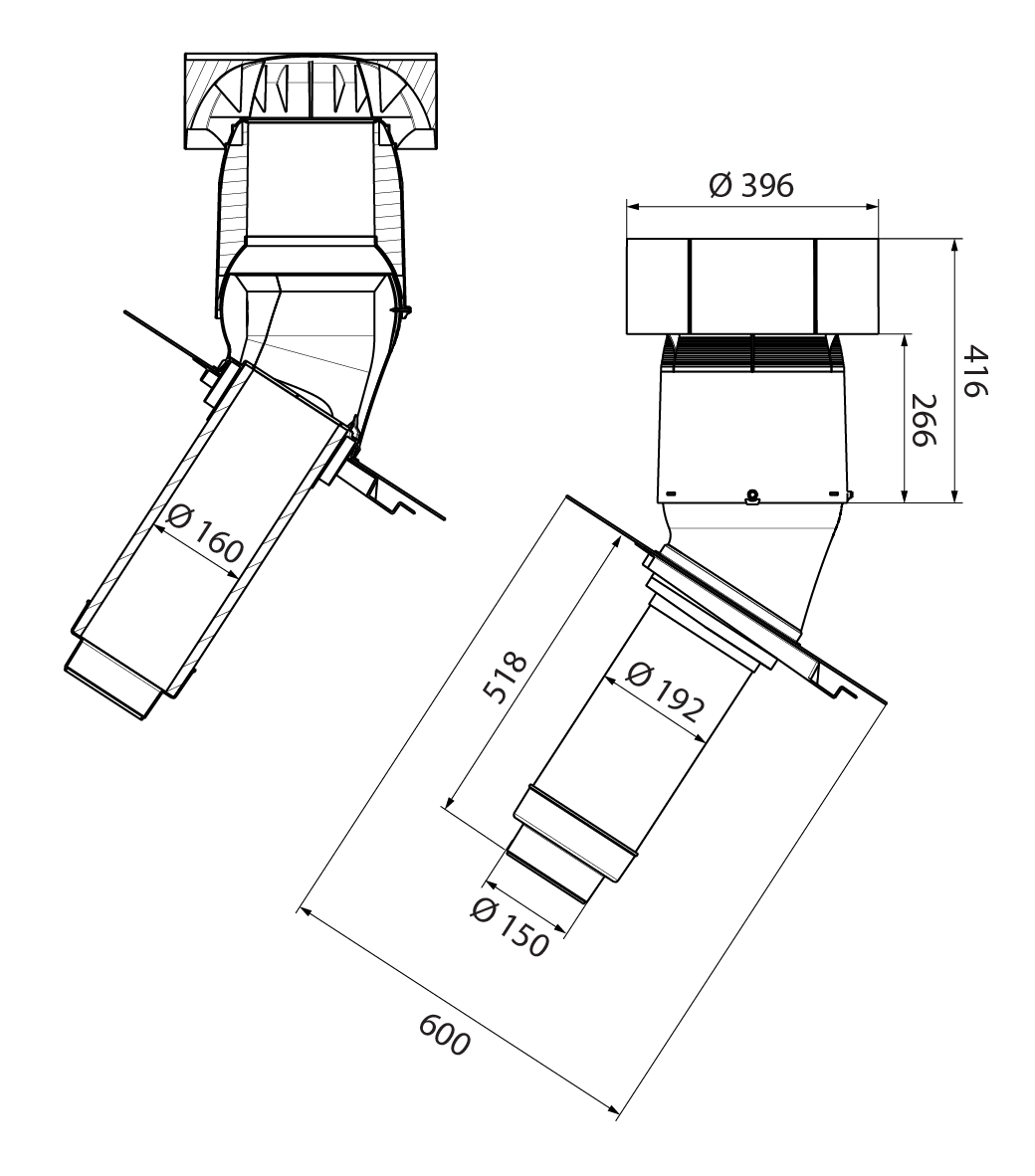

Comm. Dimension: 150 mm / 160 mm
Airflow direction: Supply / extract
Flashing material: Ubiflex standard
Length gross: 600 mm
Height underroof: 510 mm
Height: 1065 mm
Diameter air inlet pipe: 160 mm
Height overroof: 415 mm
Width: 600 mm
Net weight: 6.5 kg

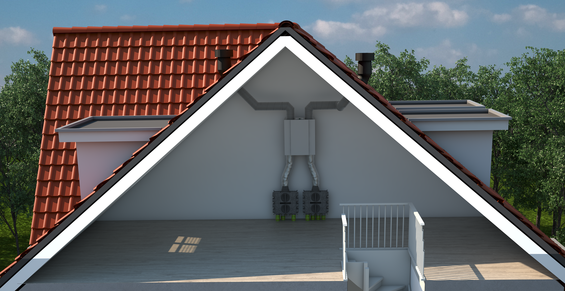

Complete Air Excellent system installation
| Brand | UBBINK (CAT 77) |
| Delivery | Next Day |
| Guarantee | 1 Year |
