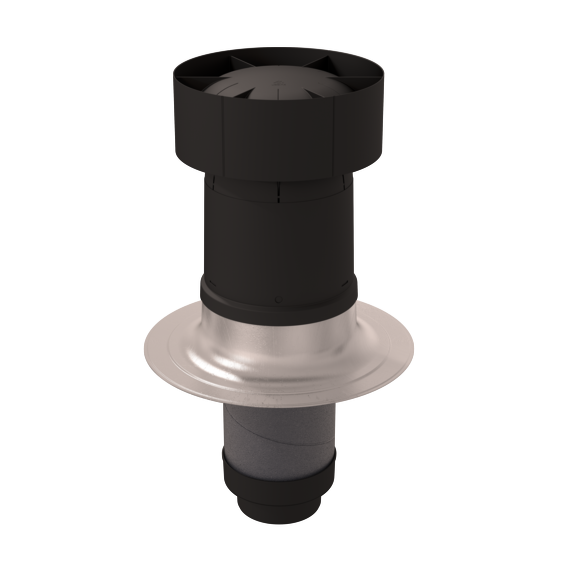

Ubbink insulated Ventus flat roof terminal with aluminium flange.
- Quick and easy installation due to clever perpendicular roof penetration
- Designed to fit to Aerfoam 160 mm & 200 mm (adaptors to fit to 150 mm and 180 mm)
- High performance, optimised pressure loss
- Smart design prevents snow and rain ingress by higher outlet and smart drains
Description
The Ventus is a new generation of clever insulated roof terminals developed for heat recovery ventilation systems for residential and small commercial buildings. It comes in one colour and in four installation kits for either a range of pitched or flat roof applications. Excellent performance on pressure loss comes standard and contributes to a higher ventilation efficiency and lower energy consumption thus saving costs for the homeowner. The Ventus is a smart and sustainable choice for heat recovery ventilation systems and a range of other ventilation applications.
- Quick and easy installation due to clever perpendicular roof penetration
- Designed to fit to Aerfoam 160 mm & 200 mm (adaptors to fit to 150 mm and 180 mm)
- High performance, optimised pressure loss
- Smart design prevents snow and rain ingress by higher outlet and smart drains

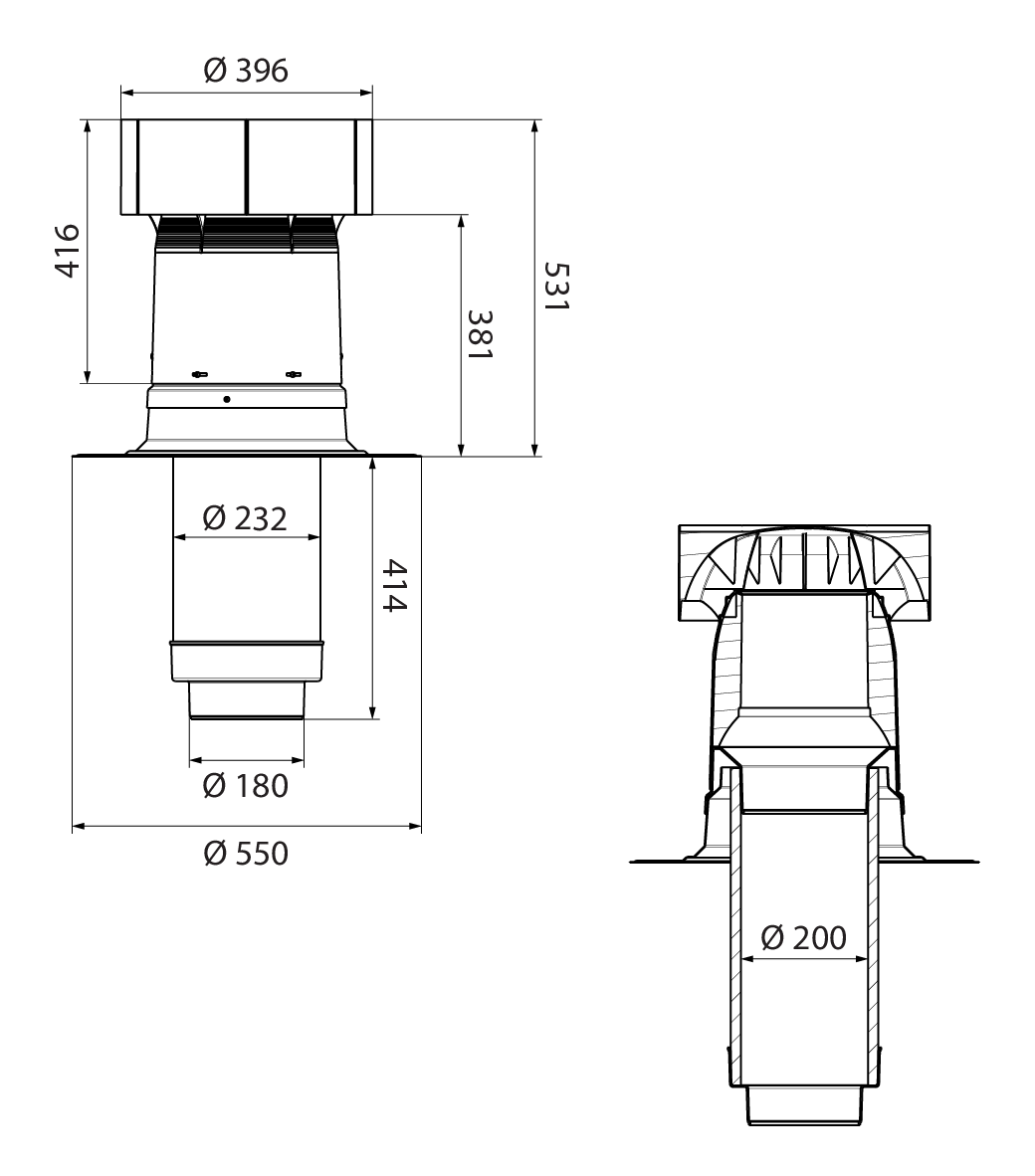

Comm. Dimension: 180 mm / 200 mm
Airflow direction: Supply / extract
Flashing material: Aluminium
Length gross: 550 mm
Height underroof: 415 mm
Height: 945 mm
Diameter air inlet pipe: 200 mm
Height overroof: 530 mm
Width: 550 mm
Net weight: 4.7 kg
Complete Air Excellent system installation
| Brand | UBBINK (CAT 77) |
| Delivery | Next Day |
| Guarantee | 1 Year |
