PIR motion sensor with adjustable humidity setting and abjustable run-on timer
3 year warranty

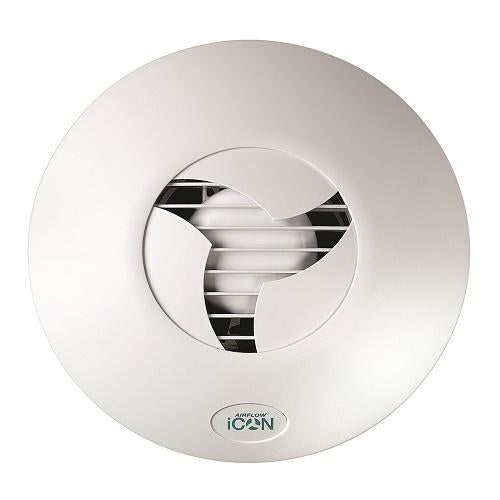

iCON 30S is ideal for toilets, en-suites, bathrooms and kitchens (when installed in-line with Building Regulations). The circular design means no squaring up is required, adding to the already simple installation procedure and the iris shutter design makes switching on and off almost silent and helps reduce external noise ingress.
The iCON 30 PRHTM has PIR motion sensor with adjustable run-on timer
iCON 30 has a a 3year warranty,is designed to provide ventilation levels that comply with the latest Building Regulations, is 230-240volt 50hz, IPX4 rated with a flow rate up to 118m3/hr (32l/s).

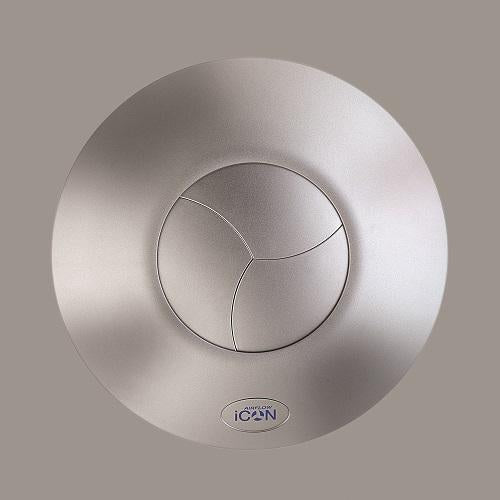

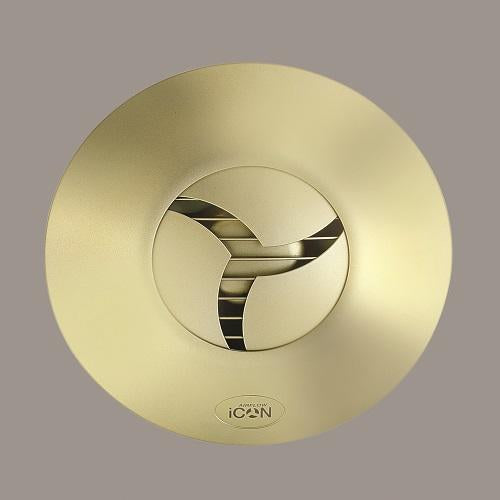

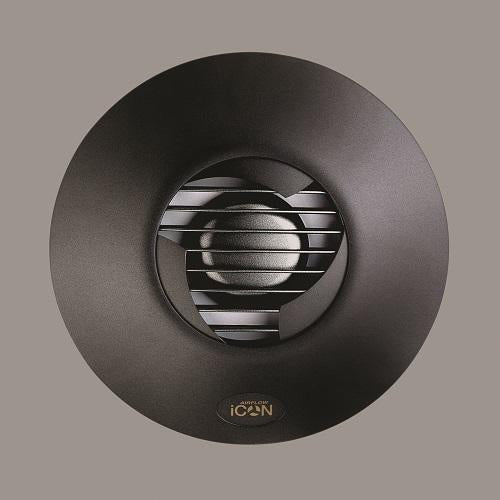

The white iCON 30 cover can also be changed so as to blend in better with the aesthetics of the room it is in. The choices are: Anthracite, Chrome, Sandstone and Silver.
An external 3A fuse is required for each fan unit. The product is fully compliant with the following safety standards: CE2004/105//EMC Directives and LVD 2006 195/EC. Switches for fans should be selected and sited in accordance with BS7161:2008.
1 x Complete Fan
1 x Instructions
1 x Screws and Fixings
|AIRFLOW SPV VENT (CAT 50)
|225 x 225 x 141
|Wall or Ceiling
|Maximum Duct Run
|3m or less
|Zone 1, 2 and Outside
