Dwelling Size – up to 250m2
Thermal Efficiency – up to 96%

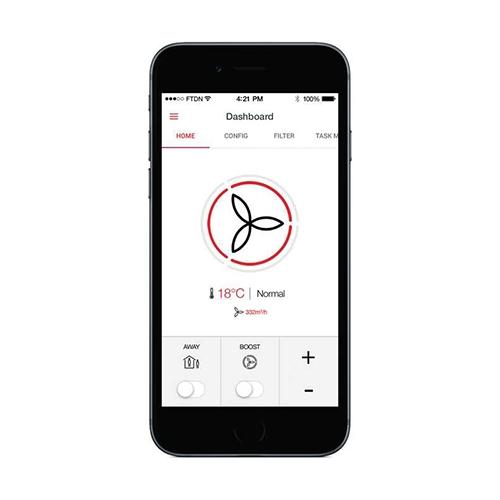

Controls by Optional Cable, Wireless, Internet
Automatic, 100% Summer Bypass
Automatic Smart Frost Protection
Optional Built-In Post Heater (EPH Models)
Passive House Approved (when equipped with Post Heater)
2 year warranty
Description

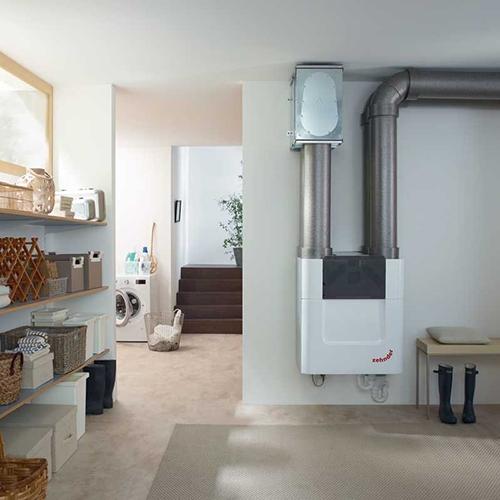

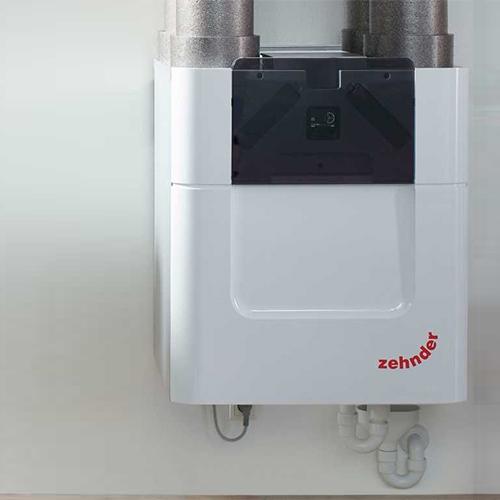

The Zehnder ComfoAir Q, with state of the art design and intelligent technology, regardless of whether you are working on a new build or an old building, with Zehnder comfortable ventilation you have an innovative, tried and tested complete system. It contains features such as its automatic modulating true summer by-pass, world class heat recovery efficiency and integrated humidity sensor to provide a comfortable, healthy and energy-efficient indoor climate.
- World class 96% efficiency.
- 100% full and filtered modulating summer bypass.
- First unit to be recognised by the PHI for its "cold recovery" efficiency
- Left or right hand configuration through software alone, no mechanical alteration required.
- Commissioning wizard for a quick and simple set-up process.
- Flow control to maintain commissioned flow rates.
- Adaptive comfort technology.
- Automatic passive temperature boost in summer.
- Humidity boost continuously monitors the humidity level within the home and looks for a man-made spike before boosting the unit, irrespective of distance or dilution.
- Tool free filter access.
Zehnder P/N 471 502 015
| Brand | Zehnder |
| Dwelling Size | 160 |
| Dimensions | 850 x 725 x 570 |
| Mounting | Wall/Mount |
| Connections | Top |
| Connections MM | 4 x 160 |
| Condensate Discharge | 32mm |
| Air Flow@ 100PA | 250 m3/h |
| Sound Level @3M (DBA) | 27.6 |
| Thermal Efficiency | Up to 96% |
| Max Power Consumption | 131w |
| Summer Bypass | Automatic |
| Filter Class | 2 x G4 or 1 X G4/1 X G7 |
| Controls | Optional Cable, Wireless, Internet |
| IP Rating | N/A |
| Running Mode | Continuous |
| Parts Guarantee | 2 Years |
| Motor Guarantee | 2 Years |
| SAP-Appendix Q | Yes |
| Passive House | Yes - with pre-heater |
| (ERP) Directive 2016 Rating | A+ |
