Dwelling Size – up to 350m2
Thermal Efficiency – up to 96%

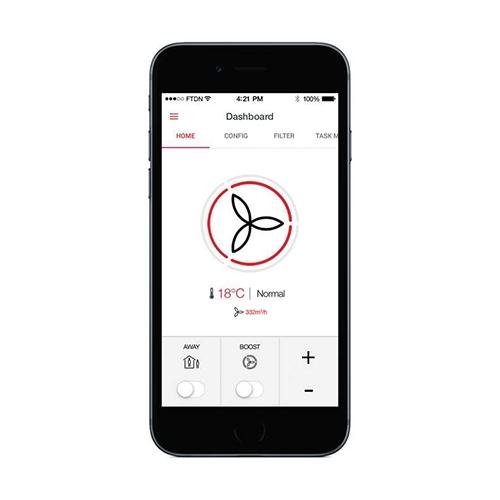

Controls by Optional Cable, Wireless, Internet
Automatic, 100% Summer Bypass
Automatic Smart Frost Protection
Optional Built-In Post Heater (EPH Models)
Passive House Approved (when equipped with Post Heater)
2 year warranty
Description

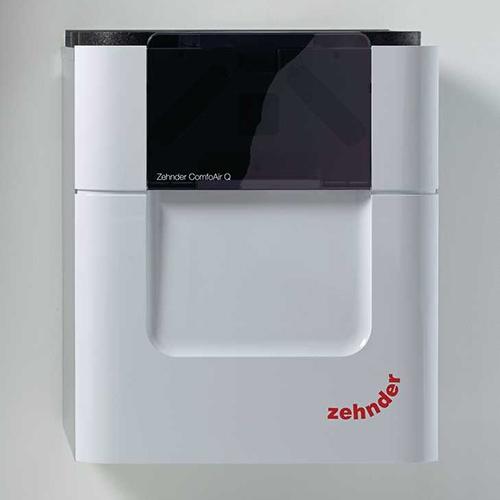

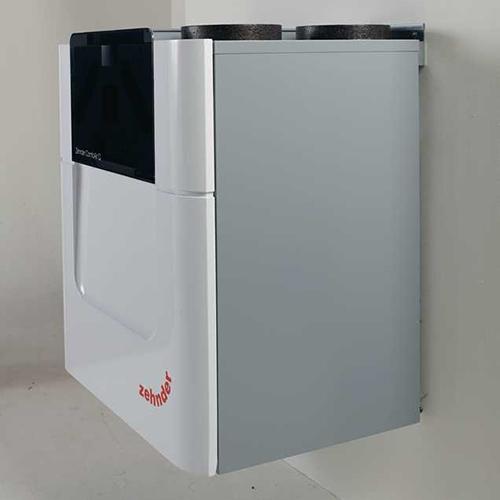

The Zehnder ComfoAir Q600 with pre-heater, left handed heat recovery ventilation system is highly suited to new build residential or light commercial projects.
Zehnder P/N 471 502 025
Brand | Zehnder |
Dwelling Size | 230 |
Dimensions | 850 x 725 x 570 |
Mounting | Wall/Mount |
Connections | Top |
Connections MM | 4 x 180 |
Condensate Discharge | 32mm |
Air Flow@ 100PA | 450 m3/h |
Sound Level @3M (DBA) | 35.9 |
Thermal Efficiency | Up to 96% |
Max Power Consumption | 296w |
Frost Protection | N/A |
Summer Bypass | Automatic |
Filter Class | 2 x G4 or 1 X G4/1 X G7 |
Controls | Optional Cable, Wireless, Internet |
IP Rating | N/A |
Running Mode | Continuous |
Parts Guarantee | 2 Years |
Motor Guarantee | 2 Years |
SAP-Appendix Q | Yes |
Passive House | Yes - with pre-heater |
(ERP) Directive 2016 Rating | A+ |
