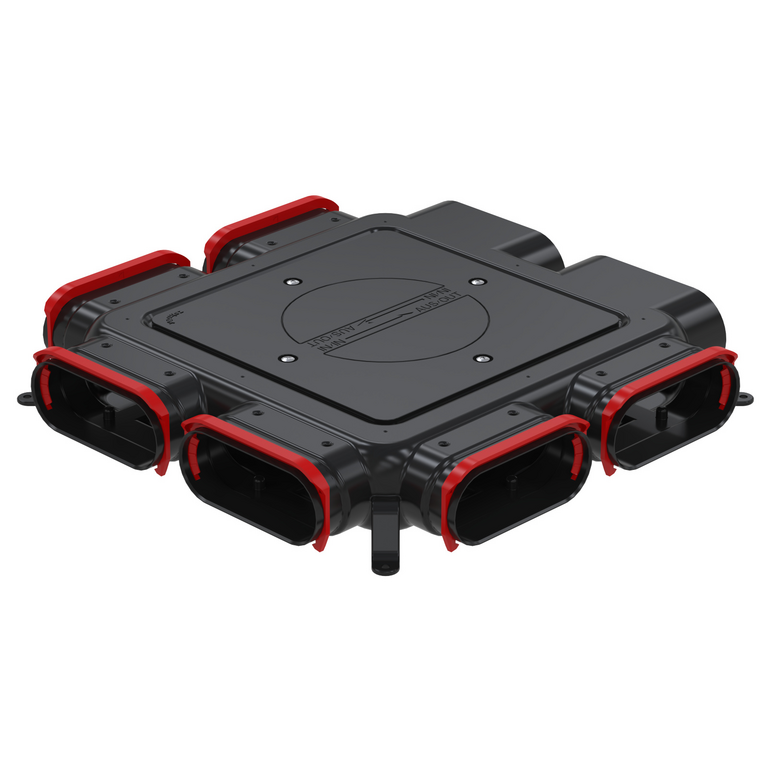

Zehnder ComfoTube Flat 51 Manifold, ComfoMain Rigid Double Duct to 6 x Zehnder ComfoTube Flat 51 Ports

Zehnder Flat 51 Manifold 6 Port Comfotube to Rigid Twin Duct

Zehnder ComfoTube Flat 51 manifold. Extremely low profile and compact design. Suitable for use with the Zehnder ComfoTube Flat 51 semi-rigid ductwork and comes complete with 6x locking slides and oval O-rings. Can be used with Zehnder CK300 rigid twin
ductwork or the cover can be removed and replaced with the Flat 51 manifold cover with ø 160 mm pipe adaptor. For cleaning purposes, the manifold plate can be removed for easy access. Mounting on the wall, floor or ceiling is done using the premoulded
fixing holes.

Technical Specification

Height 70 mm
Width 448 mm
Depth 438 mm
Material High-density polyethylene (HDPE)
Operating temperature range -25 to +60°C
