Description

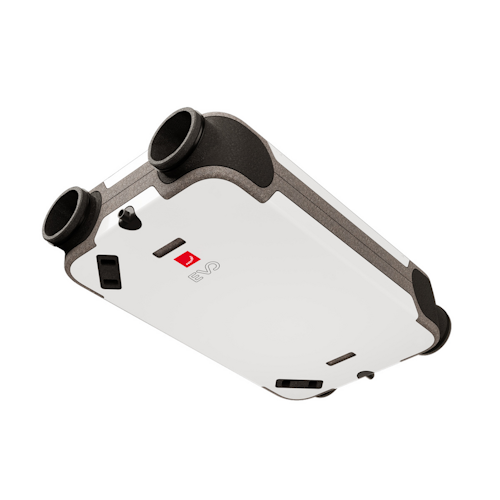

Zehnder Evo 4 - Wall or Ceiling Mounted MVHR
The Zehnder EVO 4 has a compact and slim design along with adjustable spigots and can be configured as either left or right-handed in addition to being ceiling or wall mounted.
The Zehnder EVO 4 supports flow rates of up to 400 m³/h and has the option to choose between an HRV or ERV (471 100 164) heat exchanger to suit your specific requirements. It is available with a 1 kW preheater (471 100 155/471 100 156) or without electric preheating (471 100 163) and has 100% full and filtered summer bypass.
The unit’s efficient motor and constant airflow technology ensure a balanced flow rate while minimizing energy consumption. The vibration damping Silentblock mountings and centrifugal fans with forward-inclined impellor blades ensure quiet operation. Finally, easy maintenance through tool free filter access and a focus on delivering optimum air quality with optional filter upgrades make for a comfortable, healthy and energy-efficient indoor climate.
· Ultra compact dimensions (L 1160mm x W 600mm x H 269 mm)
· High performance with improved energy efficiency (up to 95%)
· RFZ wireless connectivity option
· Volt free contact boost capability
· Different control options via remote, smart home automation (KNX; MODBUS), or app
· ISO Coarse / ISO ePM1 (G4 / F7) filter combination as standard for pre-heater version with ISO Coarse (G4) and ISO ePM1 (F7) filter options
· Passivhaus Institute Certification
| Brand | Zehnder |
