Description

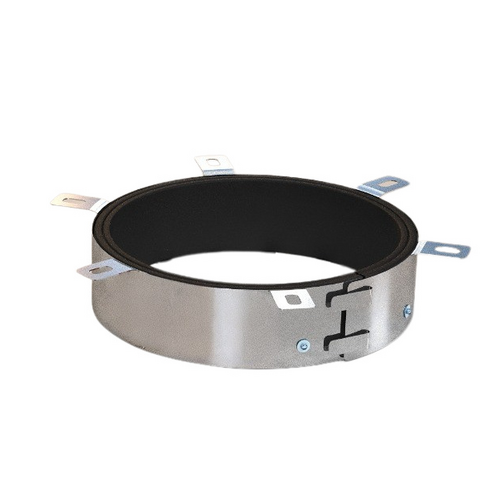

Ceilings are subject to fire regulations and must be fire protected in accordance with Approved Document B. To support this, any holes that are made for ceiling terminations must be fire stopped, in order to reinstate the original fire rating of the ceiling. To satisfy this requirement the fire collar for the Luna valve has been developed to provide protection for holes created for these 125 mm penetrations. The fire collar for is both quick and easy to install and has been independently approved for use with the Luna
valve. Minimum spacing from other ceiling penetrations must be 200 mm.
Technical Specification
Length 66 mm
Diameter ID 125 mm
Diameter OD 150 mm
Weight 0.315 kg
Material Modified steel / fire wrap
Fire Tested to BS EN 1365-2 standard
30 minute fire rating
Tested in Timber / Metal Web Joist System
| Brand | Zehnder |
| Delivery | Next Day |
| Guarantee | 1 Year |
