Zehnder GD Rectangular Ducting, Insulated GD9 45 Deg Vertical Bend 220x90 mm

Description

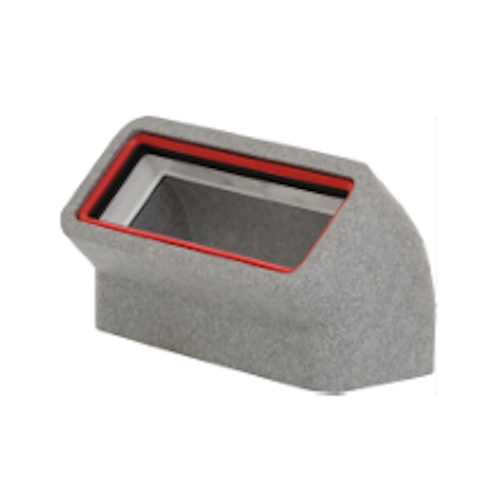

Vertical insulated bend available in 45° and 90°.
Each bend comes complete with two duct to fitting
connectors (GD917SSCI) to securely connect to a
straight length of insulated duct.

Technical Specification
Angle 45°
Height 158 mm
Width 260 mm
Depth 160 mm
Weight 0.210 kg
